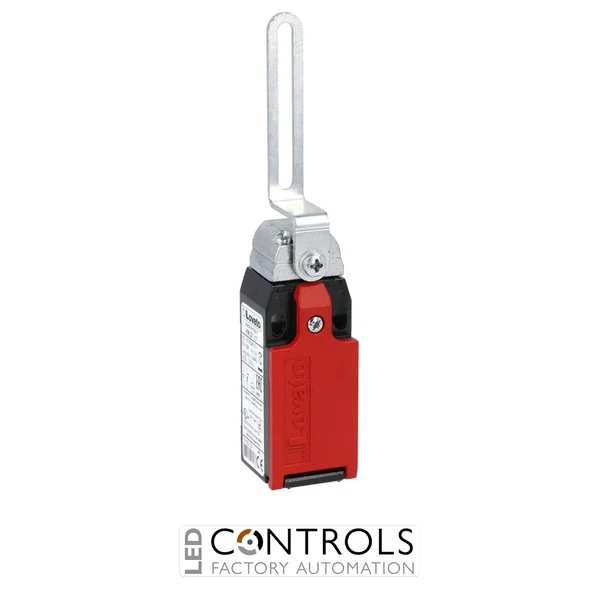

KMQ1L03 – SLOTTED LEVER METAL SAFETY SWITCH 3NC

Q: What is the Lovato KMQ1L03 used for?

The Lovato KMQ1L03 is used as a safety limit switch for monitoring machine positions, protective guards and mechanical movement in industrial automation systems.

Q: What contacts does the KMQ1L03 have?

The KMQ1L03 features three normally closed (3NC) slow action contacts designed for industrial safety switching applications.

Q: What actuator does the KMQ1L03 use?

The Lovato KMQ1L03 uses a slotted lever actuator designed for reliable mechanical position detection and switching.

Q: What cable entry does the KMQ1L03 use?

The KMQ1L03 uses an M20 cable entry located on the bottom of the enclosure.

Q: What protection rating does the KMQ1L03 provide?

The Lovato KMQ1L03 provides IP65 protection, making it suitable for industrial environments requiring protection against dust and water ingress.

Lovato Electric KMQ1L03 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KMQ1L03MPN: KMQ1L03

List Price £98.41 ex VAT

Your Price (ex VAT)

£98.41

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £98.41

Trade pricing is personalised to your account

Manufacturer Lead Time

£98.41

Lovato KMQ1L03 Metal Safety Limit Switch 3NC Slow Action Slotted Lever

The Lovato Electric KMQ1L03 is a robust metal safety limit switch designed for industrial automation, machinery safety and position monitoring applications. Featuring a slotted lever actuator, durable aluminium-zinc alloy housing and 3NC slow action contacts, the KMQ1L03 provides reliable switching performance for demanding industrial environments.

Part of the Lovato K series limit switch range, the KMQ1L03 is designed with EN 50047 compliant dimensions, M20 bottom cable entry and IP65 protection. Its forced opening contact operation makes it suitable for machine guarding, safety circuits and industrial control installations requiring dependable mechanical switching performance.

Why Choose the Lovato Electric KMQ1L03?

Heavy-duty metal construction: Aluminium-zinc alloy housing provides reliable operation in industrial environments.
Safety contact configuration: Features 3NC slow action contacts for safety monitoring applications.
Slotted lever actuator: Provides accurate mechanical position detection and switching.
Forced opening contacts: Supports safety-related machinery applications.
Industrial protection: IP65 body protection helps prevent dust and water ingress.

Applications

Industrial machinery safety systems
Machine door and guard monitoring
Automation equipment
OEM machinery installations
Safety control circuits
Industrial position sensing applications

Technical Specifications

Weight [g]	220
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	150X060X036
Volume [cm³]	324
Bar code [EAN13]	8013975117279
Product designation	Slotted lever
Product type designation	KMQ
Housing Material	Aluminium-zinc alloy
Type of contact	3NC Slow action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A300 Q300
Rated insulation voltage Ui [V]	440
Rated impulse withstand voltage Uimp	4
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Mechanical life	100000
B10d	100000
Mechanical operation	3600
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the bottom
Pollution degree	3
min [°C]	-40
max [°C]	+70
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Metal
Connection	M20 cable entry

Frequently Asked Questions

What is the Lovato KMQ1L03 used for?

The Lovato KMQ1L03 is used as a safety limit switch for monitoring machine positions, protective guards and mechanical movement in industrial automation systems.

What contacts does the KMQ1L03 have?

The KMQ1L03 features three normally closed (3NC) slow action contacts designed for industrial safety switching applications.

What actuator does the KMQ1L03 use?

The Lovato KMQ1L03 uses a slotted lever actuator designed for reliable mechanical position detection and switching.

What cable entry does the KMQ1L03 use?

The KMQ1L03 uses an M20 cable entry located on the bottom of the enclosure.

What protection rating does the KMQ1L03 provide?

The Lovato KMQ1L03 provides IP65 protection, making it suitable for industrial environments requiring protection against dust and water ingress.

Common Search Terms

Lovato KMQ1L03, Lovato Electric KMQ1L03, KMQ1L03 safety limit switch, Lovato K series slotted lever switch, metal safety switch 3NC, industrial lever limit switch.

Weight [g]	220
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	150X060X036
Volume [cm³]	324
Bar code [EAN13]	8013975117279
Product designation	Slotted lever
Product type designation	KMQ
Housing Material	Aluminium-zinc alloy
Type of contact	3NC Slow action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A300 Q300
Rated insulation voltage Ui [V]	440
Rated impulse withstand voltage Uimp	4
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Mechanical life	100000
B10d	100000
Mechanical operation	3600
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the bottom
Pollution degree	3
min [°C]	-40
max [°C]	+70
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Metal
Connection	M20 cable entry
