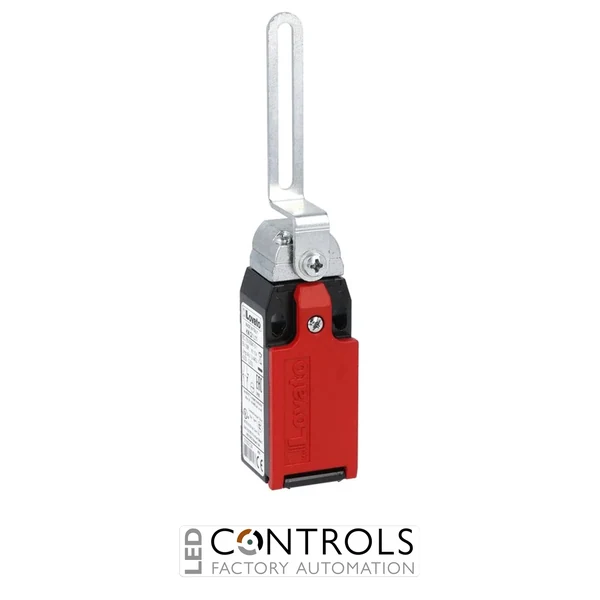

KMQ1L12 – SLOTTED LEVER METAL SAFETY SWITCH 1NO+2N

Q: What is the Lovato KMQ1L12 used for?

The Lovato KMQ1L12 is used as a safety limit switch for monitoring machine positions, protective guards and mechanical movement in industrial automation systems.

Q: What contacts does the KMQ1L12 have?

The KMQ1L12 features one normally open contact and two normally closed contacts with slow action switching.

Q: What actuator does the KMQ1L12 use?

The Lovato KMQ1L12 uses a slotted lever actuator designed for reliable mechanical switching and position detection.

Q: What cable entry does the KMQ1L12 use?

The KMQ1L12 uses an M20 cable entry located on the bottom of the enclosure.

Q: What protection rating does the KMQ1L12 provide?

The Lovato KMQ1L12 provides IP65 protection, making it suitable for industrial environments requiring protection against dust and water ingress.

Lovato Electric KMQ1L12 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KMQ1L12MPN: KMQ1L12

List Price £98.41 ex VAT

Your Price (ex VAT)

£98.41

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £98.41

Trade pricing is personalised to your account

Manufacturer Lead Time

£98.41

Lovato KMQ1L12 Metal Safety Limit Switch 1NO+2NC Slow Action Slotted Lever

The Lovato Electric KMQ1L12 is a high-quality metal safety limit switch designed for industrial automation, machinery safety and position monitoring applications. Featuring a slotted lever actuator, durable aluminium-zinc alloy housing and 1NO + 2NC slow action contacts, the KMQ1L12 provides reliable switching performance for demanding industrial environments.

Part of the Lovato K series safety switch range, the KMQ1L12 is manufactured to EN 50047 dimensions and features an M20 bottom cable entry, IP65 protection and a robust metal enclosure. The switch is suitable for machine guarding, safety circuits, automation equipment and industrial control installations requiring dependable mechanical switching.

Why Choose the Lovato Electric KMQ1L12?

Durable metal construction: Aluminium-zinc alloy housing provides reliable operation in industrial environments.
Flexible safety contact configuration: 1NO + 2NC slow action contacts support versatile control and safety circuits.
Slotted lever actuator: Provides dependable mechanical position detection and switching.
Industrial safety design: Suitable for machine monitoring and safety applications.
Reliable protection: IP65 enclosure rating helps protect against dust and water ingress.

Applications

Industrial machinery safety systems
Machine door and guard monitoring
Automation equipment
OEM machinery installations
Safety control circuits
Industrial position sensing applications

Technical Specifications

Weight [g]	220
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	150X060X036
Volume [cm³]	324
Bar code [EAN13]	8013975117293
Product designation	Slotted lever
Product type designation	KMQ
Housing Material	Aluminium-zinc alloy
Type of contact	1NO+2NC Slow action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A300 Q300
Rated insulation voltage Ui [V]	440
Rated impulse withstand voltage Uimp	4
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Mechanical life	100000
B10d	100000
Mechanical operation	3600
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the bottom
Pollution degree	3
min [°C]	-40
max [°C]	+70
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Metal
Connection	M20 cable entry

Frequently Asked Questions

What is the Lovato KMQ1L12 used for?

The Lovato KMQ1L12 is used as a safety limit switch for monitoring machine positions, protective guards and mechanical movement in industrial automation systems.

What contacts does the KMQ1L12 have?

The KMQ1L12 features one normally open contact and two normally closed contacts with slow action switching.

What actuator does the KMQ1L12 use?

The Lovato KMQ1L12 uses a slotted lever actuator designed for reliable mechanical switching and position detection.

What cable entry does the KMQ1L12 use?

The KMQ1L12 uses an M20 cable entry located on the bottom of the enclosure.

What protection rating does the KMQ1L12 provide?

The Lovato KMQ1L12 provides IP65 protection, making it suitable for industrial environments requiring protection against dust and water ingress.

Common Search Terms

Lovato KMQ1L12, Lovato Electric KMQ1L12, KMQ1L12 safety limit switch, Lovato K series slotted lever switch, metal safety switch 1NO 2NC, industrial lever limit switch.

Weight [g]	220
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	150X060X036
Volume [cm³]	324
Bar code [EAN13]	8013975117293
Product designation	Slotted lever
Product type designation	KMQ
Housing Material	Aluminium-zinc alloy
Type of contact	1NO+2NC Slow action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A300 Q300
Rated insulation voltage Ui [V]	440
Rated impulse withstand voltage Uimp	4
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Mechanical life	100000
B10d	100000
Mechanical operation	3600
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the bottom
Pollution degree	3
min [°C]	-40
max [°C]	+70
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Metal
Connection	M20 cable entry
