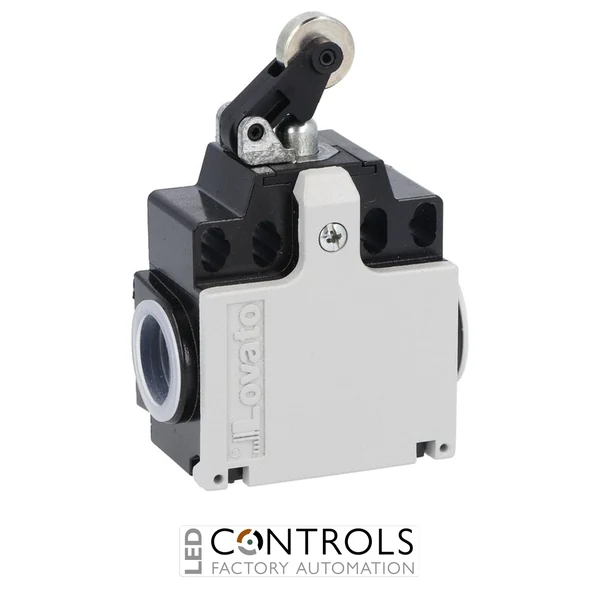

KNC2L20 – MET ROLLER CENTRE LEVER 2ENTRIES L/S 2NO

Q: What is the Lovato KNC2L20 used for?

The Lovato KNC2L20 is an industrial limit switch used to detect machine positions, movement, travel limits, and end positions in automation and machinery control systems.

Q: What actuator does the Lovato KNC2L20 use?

The KNC2L20 uses a roller centre push lever actuator fitted with a metal roller for dependable mechanical operation.

Q: What contact configuration does the KNC2L20 have?

The Lovato KNC2L20 features two normally open (2NO) slow-action contacts.

Q: What is the protection rating of the Lovato KNC2L20?

The KNC2L20 body housing is rated IP65, while its terminals are rated IP20.

Q: What cable entries does the KNC2L20 have?

The Lovato KNC2L20 features two M20 cable entries positioned on the sides of the switch housing.

Q: What is the operating temperature range of the KNC2L20?

The Lovato KNC2L20 is specified for operation from -25°C to +70°C.

Lovato Electric KNC2L20 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KNC2L20MPN: KNC2L20

List Price £53.54 ex VAT

Your Price (ex VAT)

£53.54

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £53.54

Trade pricing is personalised to your account

Manufacturer Lead Time

£53.54

Lovato KNC2L20 Limit Switch - K Series Metal Roller Centre Push Lever Switch

The Lovato KNC2L20 is a robust industrial limit switch from the Lovato Electric K Series, designed for precise position detection and reliable machine control. Featuring an aluminium-zinc alloy metal housing, metal roller centre push lever actuator, and 2NO slow-action contacts, the KNC2L20 is well suited to industrial automation, conveyor systems, production machinery, and mechanical position monitoring.

Lovato KNC2L20 Product Overview

The Lovato KNC2L20 combines rugged metal construction with a centre push lever and metal roller actuator for dependable mechanical sensing. It can be used to detect machine movement, travel limits, and operating positions where consistent switching performance is required.

The KNC2L20 features dimensions compatible with EN 50047, two M20 side cable entries, self-releasing screw terminals, and a body housing rated to IP65. Its 2NO slow-action contacts, 10A thermal current rating, and 440V rated insulation voltage make it a versatile choice for professional industrial control installations.

Key Features

Lovato Electric K Series industrial limit switch
Roller centre push lever operating mechanism
Durable aluminium-zinc alloy metal housing
Metal roller for reliable mechanical actuation
2NO slow-action contact configuration
10A thermal current rating
440V rated insulation voltage
4kV rated impulse withstand voltage
Two M20 side cable entries
Self-releasing screw terminals
IP65 body housing protection
Dimensions compatible with EN 50047

Applications

Industrial automation systems
Machine position and travel limit detection
Conveyor and material handling equipment
Production and packaging machinery
Mechanical movement monitoring
Industrial control systems
End-of-travel position sensing

Why Choose Lovato KNC2L20?

The Lovato KNC2L20 provides a combination of rugged construction, accurate mechanical actuation, and dependable slow-action switching. Its aluminium-zinc alloy housing, metal roller, 2NO contacts, and IP65 body protection make it particularly suitable for industrial environments where reliable position sensing is essential.

With two M20 side cable entries and dimensions compatible with EN 50047, the KNC2L20 can be conveniently integrated into a wide range of machinery and automation installations. Its 10A thermal current rating and A300/Q300 utilization designation provide additional versatility for industrial control circuits.

Technical Specifications

Weight [g]	220
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	065X046X090
Volume [cm³]	269.1
Bar code [EAN13]	8013975128169
Product designation	Roller centre push lever
Product type designation	KNC
Housing	Aluminium-zinc alloy
Roller	Metal
Type of contact	2NO Slow action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A300 Q300
Rated insulation voltage Ui [V]	440
Rated impulse withstand voltage Uimp	4
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the sides
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Metal
Connection	M20 cable entry

Frequently Asked Questions

What is the Lovato KNC2L20 used for?

The Lovato KNC2L20 is an industrial limit switch used to detect machine positions, movement, travel limits, and end positions in automation and machinery control systems.

What actuator does the Lovato KNC2L20 use?

The KNC2L20 uses a roller centre push lever actuator fitted with a metal roller for dependable mechanical operation.

What contact configuration does the KNC2L20 have?

The Lovato KNC2L20 features two normally open (2NO) slow-action contacts.

What is the protection rating of the Lovato KNC2L20?

The KNC2L20 body housing is rated IP65, while its terminals are rated IP20.

What cable entries does the KNC2L20 have?

The Lovato KNC2L20 features two M20 cable entries positioned on the sides of the switch housing.

What is the operating temperature range of the KNC2L20?

The Lovato KNC2L20 is specified for operation from -25°C to +70°C.

Weight [g]	220
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	065X046X090
Volume [cm³]	269.1
Bar code [EAN13]	8013975128169
Product designation	Roller centre push lever
Product type designation	KNC
Housing	Aluminium-zinc alloy
Roller	Metal
Type of contact	2NO Slow action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A300 Q300
Rated insulation voltage Ui [V]	440
Rated impulse withstand voltage Uimp	4
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the sides
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Metal
Connection	M20 cable entry
