KNC2S11 – MET ROLLER CENTRE LEV 2ENTR L/S 1NO+1NC

Q: What is the Lovato KNC2S11 used for?

The Lovato KNC2S11 is used for detecting machine positions, travel limits, and mechanical movement in industrial automation and control systems.

Q: What type of actuator does the KNC2S11 have?

The KNC2S11 features a roller centre push lever actuator with a metal roller for reliable mechanical operation.

Q: What contact configuration does the Lovato KNC2S11 use?

The Lovato KNC2S11 uses 1NO + 1NC snap-action contacts, providing both normally open and normally closed switching functions.

Q: What is the protection rating of the Lovato KNC2S11?

The Lovato KNC2S11 has an IP65 protection rating, making it suitable for many industrial environments.

Lovato Electric KNC2S11 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KNC2S11MPN: KNC2S11

List Price £53.54 ex VAT

Your Price (ex VAT)

£53.54

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £53.54

Trade pricing is personalised to your account

Manufacturer Lead Time

£53.54

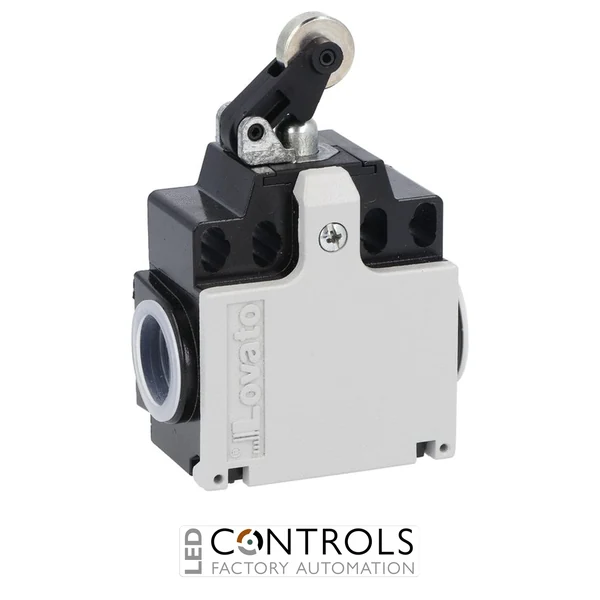

Lovato KNC2S11 Limit Switch - K Series Metal Roller Centre Push Lever Switch

The Lovato KNC2S11 is a high-quality industrial limit switch from the Lovato Electric K Series, designed for accurate position detection and reliable machine control applications. Featuring a robust metal housing, metal roller centre push lever actuator, and 1NO + 1NC snap-action contacts, the KNC2S11 provides dependable switching performance for industrial automation, machinery, and control systems.

Lovato KNC2S11 Product Overview

The Lovato KNC2S11 combines durable aluminium-zinc alloy construction with a precision roller centre push lever mechanism for dependable mechanical operation. It is designed to detect machine travel limits, movement positions, and operating conditions in industrial automation environments.

With dimensions compatible with EN 50047 standards, two side M20 cable entries, IP65 protection, and snap-action contacts, the KNC2S11 offers a flexible and reliable solution for professional control and safety applications.

Key Features

Lovato Electric K Series industrial limit switch
Roller centre push lever actuator design
Aluminium-zinc alloy metal housing
Metal roller actuator
1NO + 1NC snap-action contact configuration
10A maximum contact current
Two side M20 cable entries
IP65 protection rating
EN 50047 compatible dimensions

Applications

Industrial automation systems
Machine position monitoring
Conveyor systems
Production machinery
Material handling equipment
Mechanical movement detection
Industrial control circuits

Why Choose Lovato KNC2S11?

The Lovato KNC2S11 delivers reliable mechanical switching with a rugged industrial design. Its metal roller actuator, snap-action 1NO + 1NC contacts, and IP65-rated housing make it a dependable choice for applications requiring accurate position sensing and long-term operational reliability.

The compact K Series design allows easy integration into machinery and automation systems while maintaining excellent durability in industrial environments.

Technical Specifications

Weight [g]	222
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	065X046X090
Volume [cm³]	269.1
Bar code [EAN13]	8013975128114
Product designation	Roller centre push lever
Product type designation	KNC
Housing	Aluminium-zinc alloy
Roller	Metal
Type of contact	1NO+1NC Snap action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A300 Q300
Rated insulation voltage Ui [V]	440
Rated impulse withstand voltage Uimp	4
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the sides
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Metal
Connection	M20 cable entry

Frequently Asked Questions

What is the Lovato KNC2S11 used for?

The Lovato KNC2S11 is used for detecting machine positions, travel limits, and mechanical movement in industrial automation and control systems.

What type of actuator does the KNC2S11 have?

The KNC2S11 features a roller centre push lever actuator with a metal roller for reliable mechanical operation.

What contact configuration does the Lovato KNC2S11 use?

The Lovato KNC2S11 uses 1NO + 1NC snap-action contacts, providing both normally open and normally closed switching functions.

What is the protection rating of the Lovato KNC2S11?

The Lovato KNC2S11 has an IP65 protection rating, making it suitable for many industrial environments.

Weight [g]	222
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	065X046X090
Volume [cm³]	269.1
Bar code [EAN13]	8013975128114
Product designation	Roller centre push lever
Product type designation	KNC
Housing	Aluminium-zinc alloy
Roller	Metal
Type of contact	1NO+1NC Snap action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A300 Q300
Rated insulation voltage Ui [V]	440
Rated impulse withstand voltage Uimp	4
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the sides
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Metal
Connection	M20 cable entry
