KND1L20 – ROLLER SIDE PUSH LEV 2 ENTRIES L/S 2NO

Q: What is the Lovato KND1L20 used for?

The Lovato KND1L20 is used for detecting machine positions, travel limits, and mechanical movement conditions in industrial automation and control systems.

Q: What actuator does the Lovato KND1L20 use?

The KND1L20 uses a roller side push lever actuator with a metal roller designed for reliable mechanical operation.

Q: What contact configuration does the Lovato KND1L20 have?

The Lovato KND1L20 features 2NO slow-action contacts for industrial control applications.

Q: What is the protection rating of the Lovato KND1L20?

The Lovato KND1L20 has an IP65-rated body housing, making it suitable for many industrial environments.

Q: What cable entries does the KND1L20 have?

The Lovato KND1L20 features M20 cable entries located on the sides of the housing.

Lovato Electric KND1L20 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KND1L20MPN: KND1L20

List Price £52.07 ex VAT

Your Price (ex VAT)

£52.07

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £52.07

Trade pricing is personalised to your account

Manufacturer Lead Time

£52.07

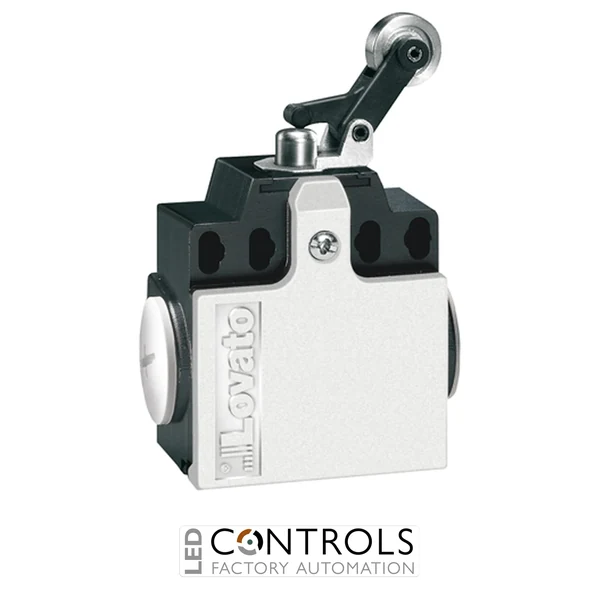

Lovato KND1L20 Limit Switch - K Series Roller Side Push Lever Switch

The Lovato KND1L20 is a robust industrial limit switch from the Lovato Electric K Series, designed for reliable position detection and machine control applications. Featuring an aluminium-zinc alloy metal housing, roller side push lever actuator with metal roller, and 2NO slow-action contacts, the KND1L20 provides dependable switching performance for industrial automation, machinery, and control systems.

Lovato KND1L20 Product Overview

The Lovato KND1L20 combines durable mechanical construction with precise switching technology to provide accurate detection of machine movement, travel limits, and operating positions. Its roller side push lever design allows smooth mechanical engagement and reliable operation in demanding industrial environments.

Designed with dimensions compatible with EN 50047 standards, the KND1L20 features two side M20 cable entries, self-releasing screw terminals, IP65 body protection, and 2NO slow-action contacts for flexible integration into industrial control and automation applications.

Key Features

Lovato Electric K Series industrial limit switch
Roller side push lever actuator
Aluminium-zinc alloy metal housing
Metal roller actuator
2NO slow-action contact configuration
10A thermal current rating
440V rated insulation voltage
4kV rated impulse withstand voltage
Two M20 side cable entries
Self-releasing screw terminal connection
IP65 body protection rating
EN 50047 compatible dimensions

Applications

Industrial automation systems
Machine position monitoring
Conveyor systems
Production machinery
Material handling equipment
Mechanical travel limit detection
Industrial control circuits

Why Choose Lovato KND1L20?

The Lovato KND1L20 provides reliable mechanical switching with a rugged industrial construction. Its metal housing, roller side push lever actuator, slow-action contacts, and IP65 protection make it a dependable choice for applications requiring accurate position detection and long service life.

With EN 50047 compatible dimensions, M20 cable entries, and durable materials, the KND1L20 is suitable for a wide range of industrial machinery, automation, and control installations.

Technical Specifications

Weight [g]	220
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	065X046X090
Volume [cm³]	269.1
Bar code [EAN13]	8013975128220
Product designation	Roller side push lever
Product type designation	KND
Housing	Aluminium-zinc alloy
Roller	Metal
Type of contact	2NC Slow action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A300 Q300
Rated insulation voltage Ui [V]	440
Rated impulse withstand voltage Uimp	4
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the sides
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Metal
Connection	M20 cable entry

Frequently Asked Questions

What is the Lovato KND1L20 used for?

The Lovato KND1L20 is used for detecting machine positions, travel limits, and mechanical movement conditions in industrial automation and control systems.

What actuator does the Lovato KND1L20 use?

The KND1L20 uses a roller side push lever actuator with a metal roller designed for reliable mechanical operation.

What contact configuration does the Lovato KND1L20 have?

The Lovato KND1L20 features 2NO slow-action contacts for industrial control applications.

What is the protection rating of the Lovato KND1L20?

The Lovato KND1L20 has an IP65-rated body housing, making it suitable for many industrial environments.

What cable entries does the KND1L20 have?

The Lovato KND1L20 features M20 cable entries located on the sides of the housing.
