KND2A11 – METAL ROLLER SIDE LEVER 2 ENTR. 1NO+1NC

Q: What is the Lovato KND2A11 used for?

The Lovato KND2A11 is used for detecting machine positions, travel limits, and mechanical movement conditions in industrial automation and control systems.

Q: What actuator does the Lovato KND2A11 use?

The KND2A11 uses a roller side push lever actuator with a metal roller for reliable mechanical operation.

Q: What contact configuration does the Lovato KND2A11 have?

The Lovato KND2A11 features 1NO + 1NC slow-action overlapping contacts.

Q: What is the protection rating of the Lovato KND2A11?

The Lovato KND2A11 has an IP65-rated body housing, making it suitable for industrial environments.

Lovato Electric KND2A11 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KND2A11MPN: KND2A11

List Price £51.24 ex VAT

Your Price (ex VAT)

£51.24

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £51.24

Trade pricing is personalised to your account

Manufacturer Lead Time

£51.24

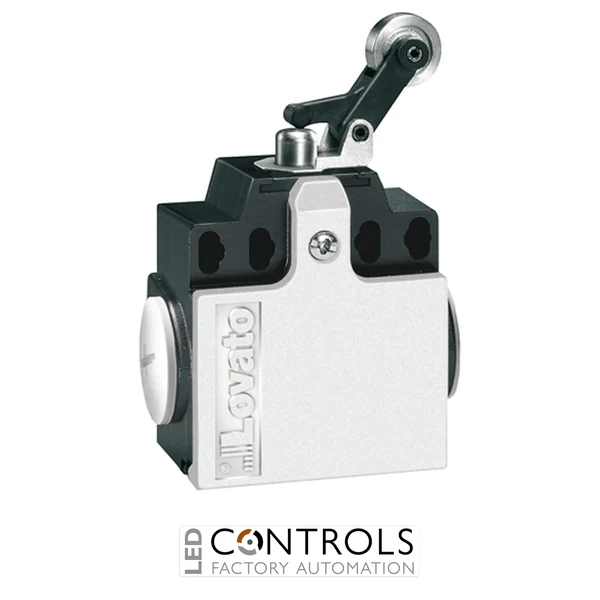

Lovato KND2A11 Limit Switch - K Series Metal Roller Side Push Lever Switch

The Lovato KND2A11 is a rugged industrial limit switch from the Lovato Electric K Series, designed for accurate position detection and reliable machine control applications. Featuring an aluminium-zinc alloy metal housing, metal roller side push lever actuator, and 1NO + 1NC slow-action overlapping contacts, the KND2A11 provides dependable switching performance for industrial automation, machinery, conveyors, and control systems.

Lovato KND2A11 Product Overview

The Lovato KND2A11 combines a durable metal construction with a roller side push lever mechanism for precise mechanical sensing. It is designed to detect machine movement, travel limits, and end positions in industrial automation environments where dependable operation is required.

With dimensions compatible with EN 50047 standards, M20 side cable entries, IP65 body protection, and 1NO + 1NC slow-action contacts, the KND2A11 offers a flexible solution for professional industrial control installations.

Key Features

Lovato Electric K Series industrial limit switch
Roller side push lever actuator
Aluminium-zinc alloy metal housing
Metal roller actuator
1NO + 1NC slow-action overlapping contacts
10A thermal current rating
A300 / Q300 utilisation category
440V rated insulation voltage
4kV rated impulse withstand voltage
M20 side cable entries
IP65 body protection rating
EN 50047 compatible dimensions

Applications

Industrial automation systems
Machine position monitoring
Conveyor systems
Production machinery
Material handling equipment
Mechanical travel limit detection
Industrial control circuits

Why Choose Lovato KND2A11?

The Lovato KND2A11 provides reliable mechanical switching with a durable industrial design. Its metal roller actuator, rugged housing, slow-action contacts, and IP65 protection make it a dependable choice for machinery requiring accurate and repeatable position sensing.

Designed for easy integration, the KND2A11 combines flexible M20 cable entry options, EN 50047 compatible dimensions, and long mechanical life for demanding automation applications.

Technical Specifications

Weight [g]	220
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	065X046X090
Volume [cm³]	269.1
Bar code [EAN13]	8013975128251
Product designation	Roller side push lever
Product type designation	KND
Housing	Aluminium-zinc alloy
Roller	Plastic
Type of contact	1NO+1NC Slow action make before break
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A300 Q300
Rated insulation voltage Ui [V]	440
Rated impulse withstand voltage Uimp	4
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the sides
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Metal
Connection	M20 cable entry

Frequently Asked Questions

What is the Lovato KND2A11 used for?

The Lovato KND2A11 is used for detecting machine positions, travel limits, and mechanical movement conditions in industrial automation and control systems.

What actuator does the Lovato KND2A11 use?

The KND2A11 uses a roller side push lever actuator with a metal roller for reliable mechanical operation.

What contact configuration does the Lovato KND2A11 have?

The Lovato KND2A11 features 1NO + 1NC slow-action overlapping contacts.

What is the protection rating of the Lovato KND2A11?

The Lovato KND2A11 has an IP65-rated body housing, making it suitable for industrial environments.
