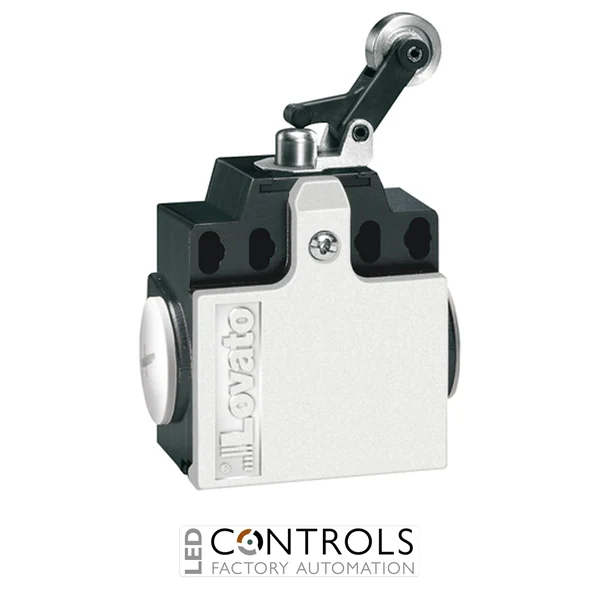

KND2S11 – METAL ROLLER SIDE LEVER 2 ENTR. 1NO+1NC

Q: What is the Lovato KND2S11 used for?

The Lovato KND2S11 is used for detecting machine positions, travel limits, and mechanical movement conditions in industrial automation and control systems.

Q: What actuator does the Lovato KND2S11 use?

The KND2S11 uses a roller side push lever actuator fitted with a metal roller for reliable mechanical operation.

Q: What contact configuration does the Lovato KND2S11 have?

The Lovato KND2S11 features 1NO + 1NC snap-action contacts for flexible industrial control applications.

Q: What is the protection rating of the Lovato KND2S11?

The Lovato KND2S11 has an IP65-rated body housing, making it suitable for industrial environments.

Q: What cable entries does the KND2S11 have?

The Lovato KND2S11 features two M20 cable entries located on the sides of the housing.

Lovato Electric KND2S11 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: KND2S11MPN: KND2S11

List Price £53.54 ex VAT

Your Price (ex VAT)

£53.54

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £53.54

Trade pricing is personalised to your account

Manufacturer Lead Time

£53.54

Lovato KND2S11 Limit Switch - K Series Metal Roller Side Push Lever Switch

The Lovato KND2S11 is a reliable industrial limit switch from the Lovato Electric K Series, designed for accurate position detection and dependable machine control applications. Featuring an aluminium-zinc alloy metal housing, metal roller side push lever actuator, and 1NO + 1NC snap-action contacts, the KND2S11 provides consistent switching performance for industrial automation, machinery, conveyors, and control systems.

Lovato KND2S11 Product Overview

The Lovato KND2S11 combines rugged industrial construction with precision snap-action switching technology. Its roller side push lever actuator with metal roller provides smooth mechanical operation and accurate detection of machine movement, travel limits, and operating positions.

Designed with dimensions compatible with EN 50047 standards, the KND2S11 features two side M20 cable entries, IP65 protection, a metal roller actuator, and snap-action contacts for dependable operation in demanding industrial environments.

Key Features

Lovato Electric K Series industrial limit switch
Roller side push lever actuator
Aluminium-zinc alloy metal housing
Metal roller Ø14mm actuator
1NO + 1NC snap-action contacts
10A maximum contact current
M20 side cable entries
IP65 protection rating
EN 50047 compatible dimensions
Suitable for industrial automation and machinery applications

Applications

Industrial automation systems
Machine position monitoring
Conveyor systems
Production machinery
Material handling equipment
Mechanical travel limit detection
Industrial control circuits

Why Choose Lovato KND2S11?

The Lovato KND2S11 provides dependable mechanical switching through its durable metal construction and precision snap-action mechanism. Its metal roller actuator, compact design, and IP65-rated housing make it suitable for demanding automation and machine control installations.

With EN 50047 compatible dimensions, M20 cable entries, and reliable 1NO + 1NC contacts, the KND2S11 offers a practical solution for machinery requiring accurate and repeatable position sensing.

Technical Specifications

Weight [g]	220
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	065X046X090
Volume [cm³]	269.1
Bar code [EAN13]	8013975128237
Product designation	Roller side push lever
Product type designation	KND
Housing	Aluminium-zinc alloy
Roller	Metal
Type of contact	2NO Snap action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A300 Q300
Rated insulation voltage Ui [V]	440
Rated impulse withstand voltage Uimp	4
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the sides
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Metal
Connection	M20 cable entry

Frequently Asked Questions

What is the Lovato KND2S11 used for?

The Lovato KND2S11 is used for detecting machine positions, travel limits, and mechanical movement conditions in industrial automation and control systems.

What actuator does the Lovato KND2S11 use?

The KND2S11 uses a roller side push lever actuator fitted with a metal roller for reliable mechanical operation.

What contact configuration does the Lovato KND2S11 have?

The Lovato KND2S11 features 1NO + 1NC snap-action contacts for flexible industrial control applications.

What is the protection rating of the Lovato KND2S11?

The Lovato KND2S11 has an IP65-rated body housing, making it suitable for industrial environments.

What cable entries does the KND2S11 have?

The Lovato KND2S11 features two M20 cable entries located on the sides of the housing.

Weight [g]	220
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	065X046X090
Volume [cm³]	269.1
Bar code [EAN13]	8013975128237
Product designation	Roller side push lever
Product type designation	KND
Housing	Aluminium-zinc alloy
Roller	Metal
Type of contact	2NO Snap action
Thermal current Ith	10
IEC/EN 60947-5-1 designation	A300 Q300
Rated insulation voltage Ui [V]	440
Rated impulse withstand voltage Uimp	4
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
min	16
max	14
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Locking bayonet insert
min [mm²]	1.5
max [mm²]	2.5
Cable connection	Self-releasing screw terminal
Cable entry	M20 on the sides
Mechanical life	<10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Terminals	IP20
Body housing	IP65
Pollution degree	3
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Metal
Connection	M20 cable entry
