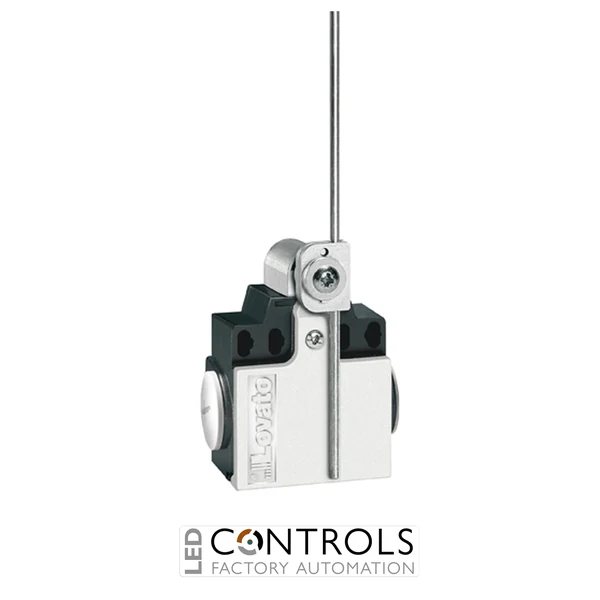

Why Choose the Lovato KNL2S11 Adjustable Rod Lever Limit Switch?
The Lovato KNL2S11 is an industrial K series limit switch with an adjustable rod lever, designed for reliable electromechanical position detection in machinery and automation systems. Its adjustable steel rod provides a practical means of detecting machine movement, component positions and travel limits where the operating point needs to be adapted to the application.
The KNL2S11 combines a durable aluminium-zinc alloy housing with a steel adjustable rod and 1NO + 1NC snap-action contacts. Its dimensions are compatible with EN 50047, providing a standardised format for industrial machinery installations.
With two M20 side cable entries, self-releasing screw terminals and an IP65 body housing protection rating, the KNL2S11 is designed for straightforward integration into industrial equipment. Its robust metal construction and adjustable actuator make it suitable for machine builders and maintenance engineers requiring dependable mechanical position switching.
Key Advantages
- Industrial limit switch with adjustable steel rod lever.
- 1NO + 1NC snap-action contacts provide complementary switching functions.
- Dimensions compatible with EN 50047 for standardised installation.
- Robust aluminium-zinc alloy housing for industrial applications.
- Two M20 side cable entries provide flexible wiring access.
- IP65 body housing protection for demanding machinery environments.
Key Features
- Lovato Electric K series limit switch.
- Adjustable rod lever actuator.
- Steel rod construction.
- 1NO + 1NC snap-action contact configuration.
- 10 A conventional free-air thermal current (Ith).
- 440 V rated insulation voltage (Ui).
- 4 kV rated impulse withstand voltage (Uimp).
- IP65 body housing protection.
Adjustable Position Detection for Industrial Machinery
Limit switches provide electromechanical position detection by changing the state of their electrical contacts when a machine component physically operates the actuator. An adjustable rod lever is particularly useful where the mechanical operating point needs to be positioned to suit the movement or geometry of the equipment.
The Lovato KNL2S11 combines an adjustable steel rod with 1NO + 1NC snap-action contacts and a robust metal housing. Its EN 50047-compatible dimensions, IP65 body protection and two M20 side cable entries make it a practical choice for industrial automation and machine-control applications.
Typical Applications
- Industrial machinery position detection.
- Machine travel and end-position detection.
- Conveyor and material handling systems.
- Automated production and assembly equipment.
- Packaging and processing machinery.
- OEM automation and machine-building applications.
