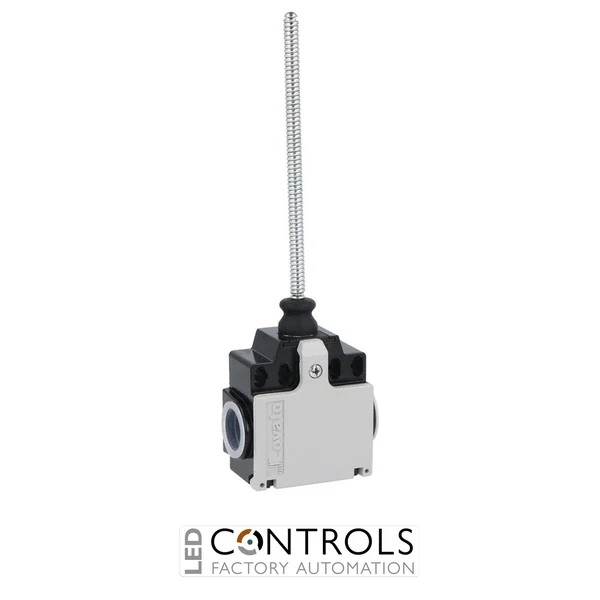

Why Choose the Lovato KNM1L02 Omnidirectional Wobble Stick Limit Switch?
The Lovato KNM1L02 is an industrial K series omnidirectional wobble stick limit switch designed for position, movement and presence detection in machinery and automation systems. Its flexible rod actuator can be operated from multiple directions, making it particularly suitable where mechanical contact may approach the switch from different angles.
The KNM1L02 combines a robust aluminium-zinc alloy housing with a flexible rod actuator and 2NC slow-action contacts. Its dimensions are compatible with EN 50047, providing a standardised industrial format for machine builders, automation engineers and maintenance applications.
With two M20 side cable entries and an IP65 body protection rating, the KNM1L02 is designed for practical integration into industrial machinery. The switch also features positive opening of its normally closed contacts, while its metal construction provides a durable solution for mechanically operated position detection.
Key Advantages
- Industrial omnidirectional wobble stick limit switch for machinery applications.
- Flexible rod actuator enables mechanical operation from multiple directions.
- 2NC slow-action contacts provide two normally closed switching contacts.
- Dimensions compatible with EN 50047 for standardised installation.
- Two M20 side cable entries provide convenient wiring access.
- IP65 body protection for industrial operating environments.
Key Features
- Lovato Electric K series limit switch.
- Omnidirectional wobble stick operating design.
- Flexible rod actuator.
- 2NC slow-action contact configuration.
- Positive opening of the normally closed contacts.
- Aluminium-zinc alloy housing.
- Two M20 side cable entries.
- IP65 body protection rating.
Omnidirectional Position Detection for Industrial Machinery
Wobble stick limit switches provide electromechanical detection where an actuator may be contacted from different directions. Deflection of the flexible rod operates the internal contacts, allowing machinery and control systems to detect the position, presence or movement of compatible machine components and materials.
The Lovato KNM1L02 combines a flexible omnidirectional actuator with two normally closed slow-action contacts and a durable metal housing. Its EN 50047-compatible dimensions, IP65 body protection and two M20 side cable entries make it a practical choice for industrial automation and machine-control applications requiring multidirectional mechanical detection.
Typical Applications
- Industrial machinery position and movement detection.
- Conveyor and material handling systems.
- Automated production and assembly equipment.
- Packaging and processing machinery.
- Object and component presence detection.
- OEM automation and machine-building applications.
