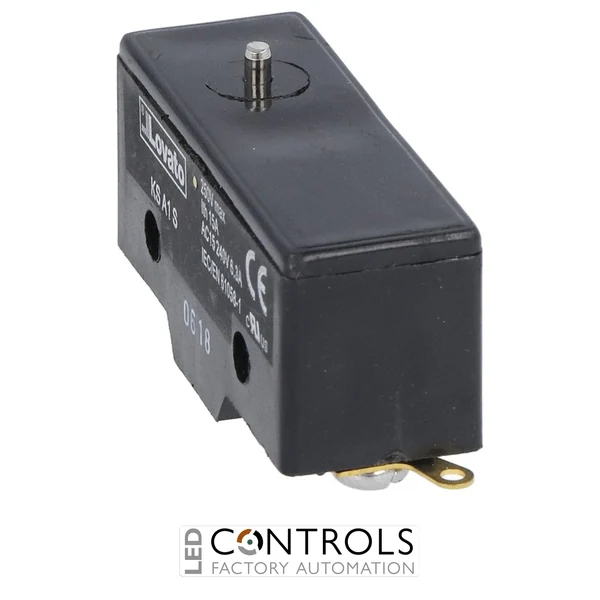

Lovato KSA1S Micro Switch – K Series Pin Plunger Metal Actuator with 1NO+1NC Contacts and Solder Terminals
The Lovato KSA1S is a compact industrial micro switch from the Lovato K Series,
designed for reliable position sensing, limit detection, and control applications. Featuring a
top push rod with metal plunger pin actuator, polymer thermoplastic housing, and solder
terminals, the KSA1S provides accurate switching performance in industrial automation and
machinery applications.
Equipped with 1NO + 1NC changeover contacts, the Lovato KSA1S offers flexible
circuit switching in a compact design. With a 15A thermal current rating, 250V rated insulation
voltage, and a mechanical life of up to 20 million operations, this micro switch is suitable
for demanding control and detection systems.
Lovato KSA1S Features
- Lovato Electric K Series industrial micro switch
- Top push rod actuator with metal plunger pin
- 1NO + 1NC changeover contact configuration
- Solder terminal connection type
- Durable polymer thermoplastic housing
- 15A thermal current rating
- 250V rated insulation voltage
- IP00 body protection rating (IP20 with terminal shroud)
- Mechanical endurance up to 20 million operations
- Suitable for industrial automation and position sensing applications
Applications
The Lovato KSA1S micro switch is commonly used in industrial automation equipment, machine
tools, control panels, limit detection systems, mechanical sensing devices, and operator control
applications requiring dependable switching performance.
Why Choose Lovato KSA1S?
The Lovato KSA1S combines compact dimensions with reliable industrial switching technology.
Its metal plunger actuator, changeover contacts, and solder terminal connections provide a
dependable solution for precise mechanical detection and control applications.
