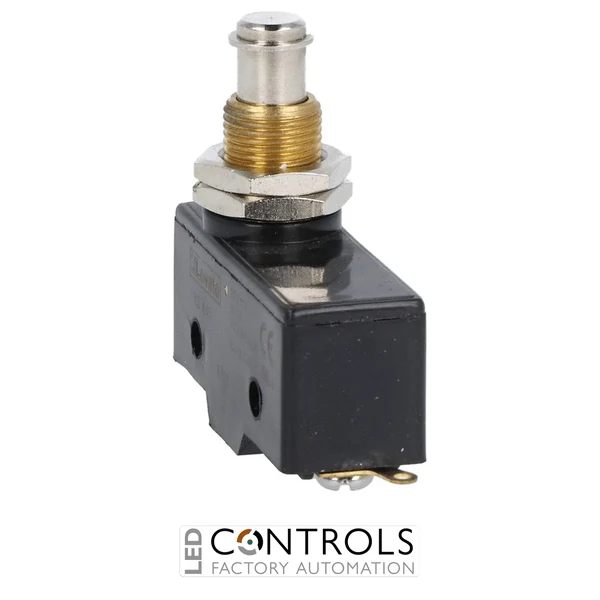

Lovato KSA4S Micro Switch – K Series Metal Plunger with M12 Fixing Head, 1NO/NC Contacts and Solder Terminals
The Lovato KSA4S is a compact industrial micro switch from the Lovato K Series,
designed for precise position sensing, limit detection, and automation control applications.
Featuring a top push rod actuator with metal plunger, an M12 fixing head, polymer thermoplastic
housing, and solder terminal connections, the KSA4S provides reliable and repeatable switching
performance for industrial machinery and control systems.
Equipped with 1NO/NC changeover contacts, the Lovato KSA4S provides flexible
switching capability for industrial circuits. With a 15A thermal current rating, 250V rated
insulation voltage, and A600 P300 utilisation designation, this micro switch is suitable for
applications requiring dependable mechanical operation and long service life.
Lovato KSA4S Features
- Lovato Electric K Series industrial micro switch
- Top push rod actuator with metal plunger
- M12 fixing head design
- 1NO/NC changeover contact configuration
- Solder terminal connections
- Polymer thermoplastic housing
- 15A thermal current rating
- 250V rated insulation voltage
- A600 P300 IEC/EN 60947-5-1 designation
- IP00 body protection rating
- IP20 protection available with terminal shroud
- Suitable for industrial automation and position detection applications
Applications
The Lovato KSA4S micro switch is suitable for industrial automation equipment, machine tools,
control panels, mechanical position sensing, limit detection systems, and applications where
accurate and repeatable switching is required.
Why Choose Lovato KSA4S?
The Lovato KSA4S combines compact construction with dependable industrial switching technology.
Its metal plunger actuator and M12 fixing head provide accurate mechanical operation, while the
1NO/NC changeover contacts allow flexible integration into control circuits. Solder terminals
provide a secure and reliable connection method for professional industrial installations.
