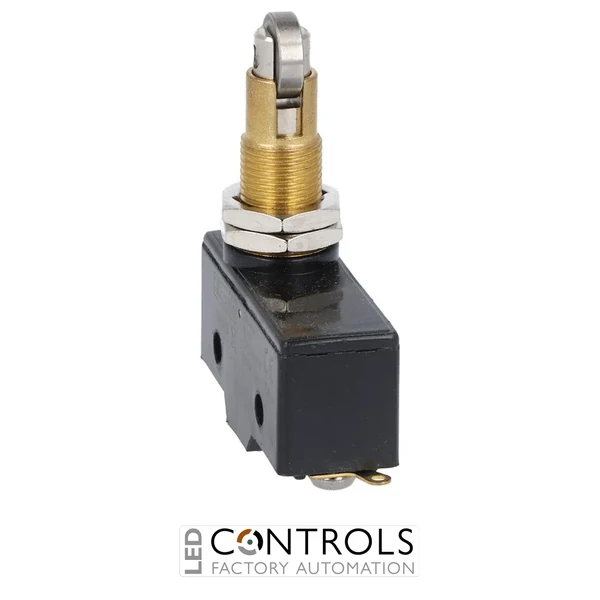

KSB1S - M12 FIXING HEAD 1NO+1NC SOLDER TERMINAL

KSB1S – M12 FIXING HEAD 1NO+1NC SOLDER TERMINAL

Engineered for dependable actuation in compact assemblies, the Lovato KSB1S plastic micro switch features a top roller push plunger and an M12 fixing head for straightforward mounting.

SKU: KSB1SMPN: KSB1S
Price
List Price £23.42 ex VAT
Your Price (ex VAT)
£23.42
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £23.42
Trade pricing is personalised to your account

Manufacturer Lead Time

£23.42

Lovato KSB1S Plastic Micro Switch K Series Top Roller Push Plunger 1NO/NC Solder Terminals

Product Overview

The Lovato KSB1S is a K Series plastic micro switch featuring a top roller push plunger actuator, M12 fixing head, 1NO/NC changeover contacts, and solder terminals. Designed for industrial automation and control applications, this compact snap-action switch provides reliable mechanical switching and long operational life.

Manufactured by Lovato Electric, the KSB1S uses a durable polymer thermoplastic housing and is suitable for limit detection, positioning, machinery control, and OEM equipment applications where accurate and repeatable switching is required.

Key Features

  • Manufacturer: Lovato Electric
  • Model: KSB1S
  • Product type: Plastic micro switch
  • Series: K Series
  • Actuator type: Top roller push plunger
  • Fixing head: M12
  • Contact configuration: 1NO/NC
  • Terminal type: Solder terminals
  • Housing material: Polymer thermoplastic
  • Thermal current rating: 15A
  • Rated insulation voltage: 250V
  • Mechanical life: Up to 20 million operations
  • Electrical life: Up to 500,000 operations
  • Operating temperature range: -25°C to +70°C

Applications

The Lovato KSB1S micro switch is ideal for industrial machinery, automation systems, electrical control panels, position sensing equipment, and limit switching applications. The roller push plunger actuator provides smooth mechanical engagement with moving machine components.

Why Choose Lovato KSB1S?

The Lovato KSB1S combines a robust thermoplastic construction, precise roller actuation, and dependable solder terminal connections. With high mechanical endurance and reliable switching performance, it is a practical choice for machine builders, maintenance professionals, and industrial automation applications.

Technical Specifications

Specification Details Product Code KSB1S
Product Type Plastic Micro Switch
Series K Series
Actuator Top Roller Push Plunger
Fixing Type M12 Fixing Head
Contact Type 1NO/NC Changeover
Terminal Type Solder
Thermal Current (Ith) 15A
Rated Insulation Voltage (Ui) 250V
Operating Force 2.5N
Mechanical Life 20,000,000 cycles
Electrical Life 500,000 cycles
Weight 56.8g
Protection Rating IP00 / IP20 with terminal shroud
Standards Compliance IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61058-1, UL508, CSA C22.2 No.14
HS Code 85365080
IP Rating IP20
Actuator Type Roller plunger
