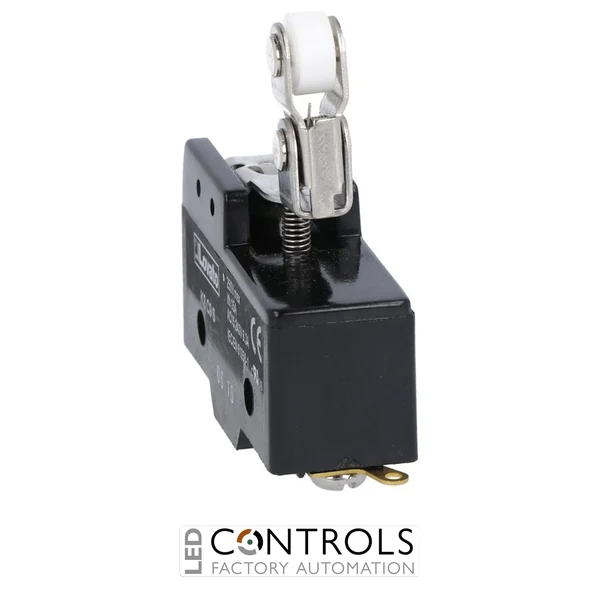

Lovato KSC9S Plastic Micro Switch K Series One-Way Roller Lever 1NO/NC Solder Terminals
Product Overview
The Lovato KSC9S is a K Series plastic micro switch designed for reliable
position detection and switching in industrial automation and machinery
applications. It features a roller centre push lever with one-way roller
action, 1NO/NC changeover contacts, and solder terminals, providing precise
and repeatable mechanical switching in a compact industrial format.
Manufactured by Lovato Electric, the KSC9S uses a durable polymer
thermoplastic housing and is designed for machinery, control panels,
conveyor equipment, positioning mechanisms, and OEM automation systems.
Its one-way roller lever is particularly suited to applications where the
actuator must respond consistently to movement from a defined direction.
Key Features
- Manufacturer: Lovato Electric
- Model: KSC9S
- Product type: Plastic micro switch
- Series: K Series
- Actuator type: Roller centre push lever
- Lever type: One-way roller lever
- Contact configuration: 1NO/NC changeover
- Terminal type: Solder terminals
- Housing material: Polymer thermoplastic
- Thermal current rating (Ith): 15A
- Rated insulation voltage (Ui): 250V
- Mechanical life: Up to 20 million operations
- Electrical life: Up to 500,000 operations
- Operating temperature range: -25°C to +70°C
- Storage temperature range: -40°C to +70°C
- Compact design for industrial position and limit detection
Applications
The Lovato KSC9S micro switch is suitable for industrial machinery,
conveyor systems, automated production equipment, control panels,
positioning mechanisms, limit detection systems, and OEM machinery. The
one-way roller lever provides controlled mechanical actuation for
applications where movement or position must be detected from a specific
direction.
Why Choose Lovato KSC9S?
The Lovato KSC9S combines a compact thermoplastic construction, one-way
roller lever actuation, versatile 1NO/NC changeover contacts, and solder
terminal connections. With a mechanical endurance of up to 20 million
cycles and a wide industrial operating temperature range, it provides a
dependable solution for machine builders, automation engineers, OEMs, and
industrial maintenance applications.
