Why Choose the LOVATO KXCBS11?

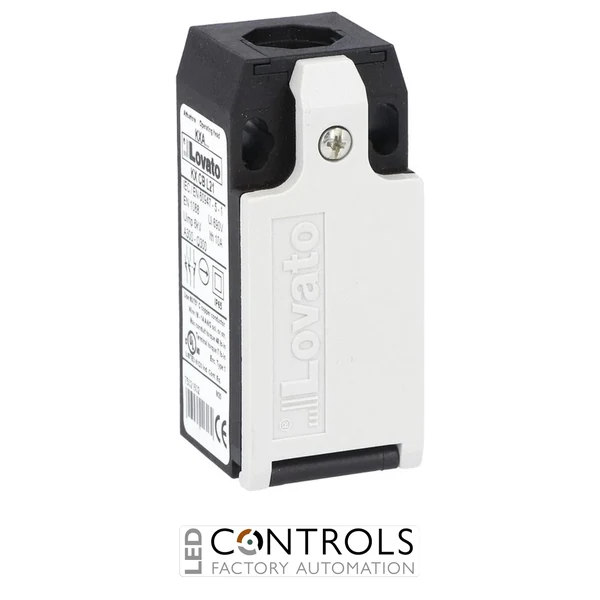

The LOVATO KXCBS11 is a complete plastic limit switch body supplied with an integrated 1NO + 1NC snap-action contact block. Designed to EN 50047 dimensional requirements, it provides a compact and dependable solution for industrial position sensing, machine control and switching applications.
Manufactured from durable polymer thermoplastic, the KXCBS11 features a single M20 cable entry positioned on the bottom of the enclosure. The integrated snap-action contact arrangement provides one normally open and one normally closed contact, allowing the unit to support a wide variety of control and signalling circuits.
The KXCBS11 is designed for use with LOVATO Electric KB, KC, KM and KN series limit switch operating heads and assemblies. Its modular construction makes it suitable for new installations as well as maintenance and replacement applications where an existing compatible LOVATO K-series operating head is being retained.
With conformity to standards including IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60204-1, UL 508 and CSA C22.2 No. 14, the KXCBS11 is designed for reliable integration into industrial machinery and control systems.
- Complete limit switch body with integrated contact block
- 1NO + 1NC snap-action contact configuration
- Polymer thermoplastic housing
- Single M20 cable entry on the bottom
- Dimensions compliant with EN 50047
- Compatible with LOVATO KB, KC, KM and KN series assemblies
- Rated thermal current Ith: 10A
- Rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp: 6kV
- Mechanical life greater than 10 million operations
- Suitable for industrial machine and automation applications
Typical Applications
The LOVATO KXCBS11 is suitable for industrial machinery and automation systems requiring dependable mechanical position detection and switching. Typical applications include:
- Machine position and end-of-travel detection
- Industrial automation systems
- Conveyor systems
- Machine guarding and mechanical interlocks
- Material handling equipment
- Packaging machinery
- Control and signalling circuits
- Replacement or maintenance of compatible LOVATO K-series limit switches
