Why Choose the Pizzato MF05 Microswitch?
The Pizzato MF05 is a compact and high-performance snap-action microswitch designed for precise position detection and control in industrial automation systems. As part of the proven Pizzato MF series, it delivers fast and repeatable switching, making it ideal for high-cycle machinery and control applications.

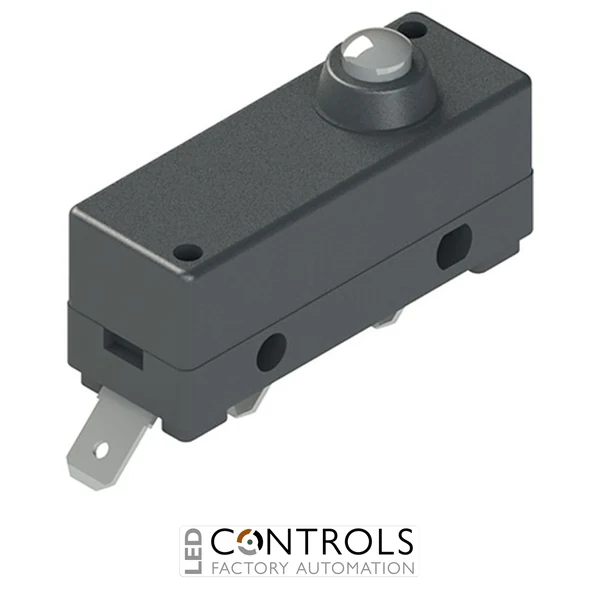

This model features a short plunger actuator, providing accurate and responsive switching in applications where limited movement or tight tolerances are required. Its robust thermoplastic housing ensures durability and reliability in demanding industrial environments.
With a SPDT (1 NO + 1 NC) contact configuration and support for both AC and DC loads, the MF05 is widely used for end-of-travel detection, position sensing and control signalling in industrial equipment.
Key Advantages
- Compact snap-action microswitch for industrial automation.
- Short plunger actuator for precise and limited-travel applications.
- Fast switching response ensures reliable control signals.
- SPDT contact configuration enables flexible switching logic.
- High mechanical durability for long service life.
- Suitable for both AC and DC switching applications.
Key Features
- Pizzato MF series microswitch.
- Snap-action switching mechanism.
- Short plunger actuator for compact actuation.
- 1 NO + 1 NC (SPDT changeover contact).
- Faston terminals for secure electrical connection.
- Compact housing for space-saving installations.
- Designed for high-cycle industrial applications.
The Pizzato MF05 utilises a snap-action mechanism to deliver rapid and consistent switching performance. This ensures reliable electrical contact transitions and minimises wear, even in high-frequency applications.
Its short plunger actuator is ideal for applications requiring minimal movement, enabling precise detection of mechanical positions in automated machinery and control systems.
Typical Applications
- End-of-travel detection in industrial machinery.
- Position sensing in automation systems.
- Control panels and electrical systems.
- Packaging and production machinery.
- Mechanical limit detection in compact assemblies.
- OEM machine building and integration.
