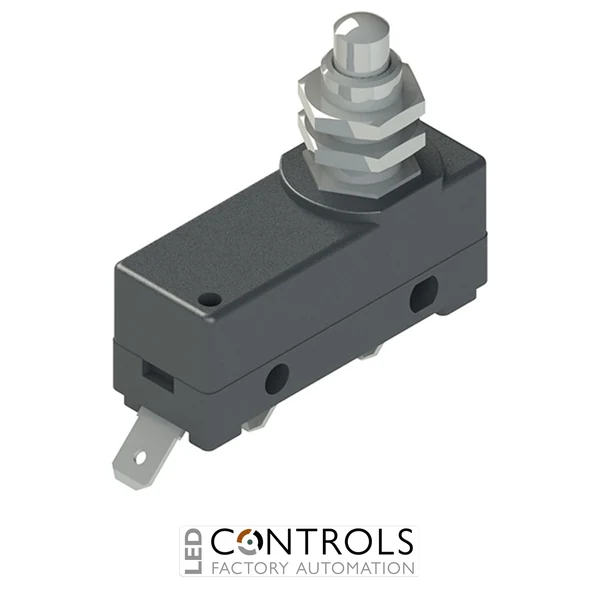

Why Choose the Pizzato MF09 Microswitch?
The Pizzato MF09 is a high-precision snap-action microswitch designed for reliable position detection and control in industrial automation systems. As part of the proven Pizzato MF series, it delivers fast and repeatable switching performance, making it ideal for high-cycle applications where accuracy and durability are critical.
This model features a threaded plunger actuator, allowing fine adjustment of the actuation point for precise mechanical control. Its compact form factor and robust construction ensure seamless integration into machinery while maintaining consistent performance over extended service life.
With a SPDT (1 NO + 1 NC) contact configuration and support for both AC and DC loads, the MF09 is widely used in industrial equipment for end-of-travel detection, position monitoring and control signalling.
Key Advantages
- Compact snap-action microswitch for industrial automation.
- Threaded plunger actuator enables precise adjustment.
- Fast switching response ensures reliable control signals.
- SPDT contact configuration supports flexible circuit design.
- High mechanical durability for long service life.
- Suitable for both AC and DC switching applications.
Key Features
- Pizzato MF series microswitch.
- Snap-action switching mechanism.
- Threaded plunger actuator (M10 × 0.75).
- 1 NO + 1 NC (SPDT changeover contact).
- Faston terminals (6.3 × 0.8 mm) for secure connection.
- Compact body for space-saving installations.
- High cycle life (approx. 10 million operations).
The Pizzato MF09 utilises a snap-action mechanism to deliver rapid and consistent switching performance. This ensures reliable electrical contact transitions while minimising wear, even in high-frequency applications.
Its threaded plunger actuator allows precise adjustment of the switching point, making it ideal for applications requiring accurate positioning and repeatability in automated machinery.
Typical Applications
- End-of-travel detection in industrial machinery.
- Position sensing in automation systems.
- Control panels and electrical equipment.
- Packaging and production machinery.
- Mechanical limit detection in moving assemblies.
- OEM machine building and integration.
