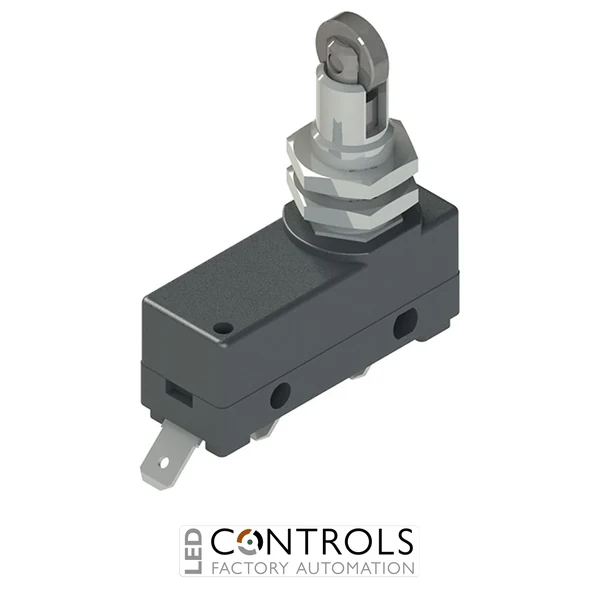

MF 17 Pizzato Microswitch with transversal roller plunger

MF 17 Pizzato Microswitch with transversal roller plunger

Pizzato MF17 snap-action microswitch with transversal roller plunger actuator, SPDT contact configuration and high durability for industrial automation and cam-driven applications.

SKU: MF17Alt SKU: MF17MPN: MF 17
Price
List Price £8.70 ex VAT
Your Price (ex VAT)
£8.70
Manufacturer Lead Time Standard Manufacturer Lead Time 4-5 Weeks, Call For Express Delivery Options
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £8.70
Trade pricing is personalised to your account

Manufacturer Lead Time

£8.70

Why Choose the Pizzato MF17 Microswitch?

The Pizzato MF17 is a robust and precise snap-action microswitch designed for industrial automation and control applications. As part of the reliable Pizzato MF series, this model features a transversal roller plunger actuator, making it ideal for applications involving lateral or cam-driven movement.

Engineered with a durable technopolymer housing and high-quality internal contacts, the MF17 ensures consistent switching performance and long service life in demanding industrial environments. The transversal roller reduces friction and wear, improving reliability in continuous operation.

With a SPDT (1 NO + 1 NC) contact configuration and snap-action mechanism, the MF17 delivers fast and repeatable switching for both AC and DC circuits, making it suitable for a wide range of industrial control tasks.

Key Advantages

  • Compact snap-action microswitch for industrial automation.
  • Transversal roller plunger actuator for lateral or cam-driven actuation.
  • Reduced mechanical wear due to rolling contact.
  • SPDT contact configuration for flexible circuit integration.
  • High mechanical durability for long service life.
  • Suitable for both AC and DC switching applications.

Key Features

  • Pizzato MF series microswitch.
  • Snap-action switching mechanism.
  • Transversal roller plunger actuator.
  • 1 NO + 1 NC (SPDT changeover contact).
  • Faston terminals (6.3 × 0.8 mm) for secure electrical connection.
  • Compact housing for space-saving installation.
  • High cycle life (approx. 10 million operations).

Reliable Roller-Based Switching for Industrial Control

The Pizzato MF17 uses a snap-action mechanism to provide rapid and consistent switching performance, ensuring reliable electrical contact transitions even in high-frequency applications.

Its transversal roller plunger actuator is specifically designed for side-mounted actuation, making it ideal for cam systems or sliding components where direct vertical actuation is not suitable. This reduces friction and improves operational lifespan.

Typical Applications

  • Cam-driven limit detection in industrial machinery.
  • Position sensing in automation systems.
  • Packaging and production equipment.
  • Conveyors and material handling systems.
  • Mechanical limit detection in lateral movement systems.
  • OEM machine building and integration.

Technical Specifications

Series MF Series
Product type Snap-action microswitch
Actuator type Transversal roller plunger
Contact configuration SPDT (1 NO + 1 NC)
Switching method ON-(ON)
Rated load (AC) 16 A at 250 V AC
Rated load (DC) 6 A at 24 V DC
Mechanical durability approx. 10 million cycles
Operating temperature −25 °C to +85 °C
Operating force approx. 3.4 N
Dimensions (approx.) 49.2 × 17.4 × 21 mm
Connection type Faston terminals
Housing material Technopolymer
HS Code 85369095
Contacts 1NO + 1NC + 1 C/O
Actuator Type Roller plunger
Housing Material Plastic

Frequently Asked Questions

What is the Pizzato MF17 used for?

This microswitch is used for position detection, end-of-travel sensing and control switching in industrial automation systems.

What is a transversal roller plunger actuator?

It is a side-mounted roller actuator designed for lateral or cam-driven movement, reducing wear and improving switching reliability.

What contact configuration does the MF17 have?

It features a SPDT (1 NO + 1 NC) contact configuration for flexible control applications.

What loads can this microswitch handle?

The MF17 supports up to 16 A at 250 V AC and 6 A at 24 V DC for resistive loads.

Is the MF17 suitable for high-cycle applications?

Yes, it is designed for durability with a mechanical life of approximately 10 million operations.

Trusted by Automation Engineers Worldwide

Pizzato MF series microswitches are widely trusted for their durability, precision and consistent performance in industrial automation and machinery applications.
