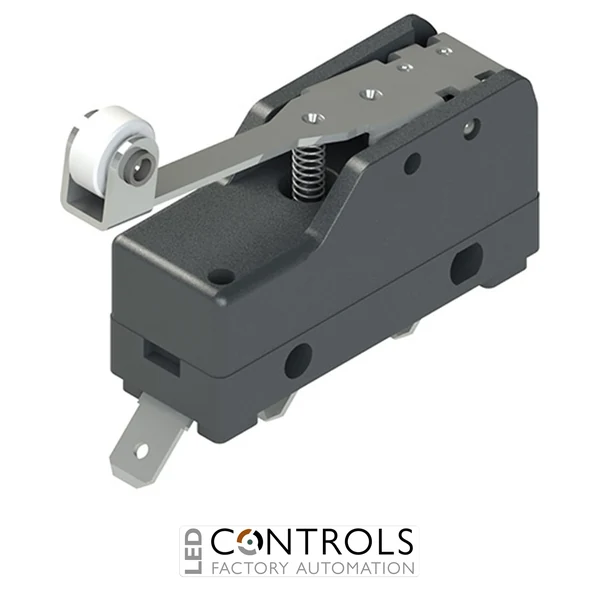

Why Choose the Pizzato MF40 Microswitch?
The Pizzato MF40 is a robust and versatile snap-action microswitch with roller lever, designed for reliable position detection and control in industrial automation systems. As part of the trusted Pizzato MF series, it combines precision switching with durable construction, making it suitable for high-cycle machinery and control applications.
This model features a roller lever actuator, which reduces friction and wear during actuation. This design is particularly effective for cam-driven or sliding mechanical systems, ensuring smoother operation and longer service life compared to fixed plunger designs.
With a SPDT (1 NO + 1 NC) contact configuration and fast snap-action switching mechanism, the MF40 delivers consistent and reliable performance in both AC and DC circuits. It is widely used in industrial equipment for end-of-travel detection and automation control.
Key Advantages
- Compact snap-action microswitch for industrial automation.
- Roller lever actuator reduces mechanical wear and improves lifespan.
- Fast switching response ensures accurate control signals.
- SPDT contact configuration for flexible circuit design.
- High mechanical durability (approx. 10 million cycles).
- Suitable for both AC and DC switching applications.
Key Features
- Pizzato MF series microswitch.
- Snap-action switching mechanism.
- Roller lever actuator for cam or sliding actuation.
- 1 NO + 1 NC (SPDT changeover contact).
- Faston terminals (6.3 × 0.8 mm) for secure connection.
- Compact housing for easy integration into machinery.
- High cycle life for industrial applications.
The Pizzato MF40 uses a snap-action mechanism to provide rapid and consistent switching performance, ensuring dependable electrical transitions even under frequent operation. Its roller lever actuator minimises friction, making it ideal for applications where continuous movement or repeated contact occurs.
This design enhances durability while maintaining precise switching points, helping improve system reliability in automated machinery and control systems.
Typical Applications
- End-of-travel detection in industrial machinery.
- Cam-driven automation systems.
- Packaging and production equipment.
- Conveyors and material handling systems.
- Mechanical limit detection in moving assemblies.
- OEM machine building and automation integration.
