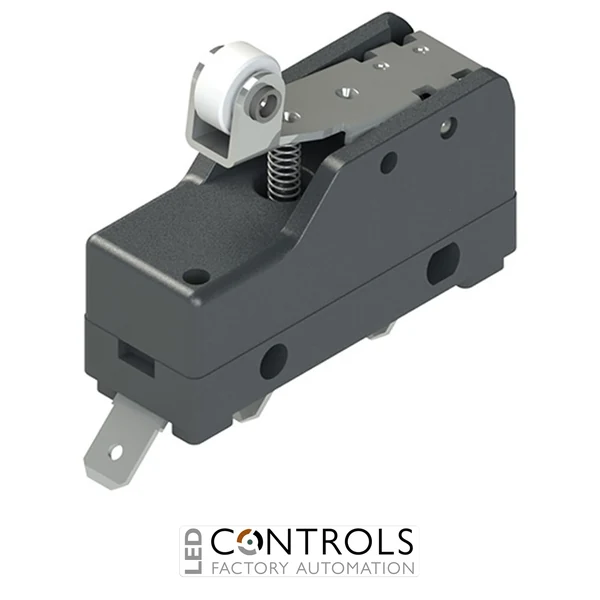

MF 45 Pizzato Microswitch with short roller lever

MF 45 Pizzato Microswitch with short roller lever

Pizzato MF45 snap-action microswitch with short roller lever actuator, SPDT contact configuration and high durability for industrial automation and cam-driven applications.

SKU: MF45Alt SKU: MF45MPN: MF 45
Price
List Price £5.81 ex VAT
Your Price (ex VAT)
£5.81
Manufacturer Lead Time Standard Manufacturer Lead Time 4-5 Weeks, Call For Express Delivery Options
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £5.81
Trade pricing is personalised to your account

Manufacturer Lead Time

£5.81

Why Choose the Pizzato MF45 Microswitch?

The Pizzato MF45 is a compact and highly reliable snap-action microswitch with short roller lever, designed for precise position detection and control in industrial automation systems. As part of the robust Pizzato MF series, it delivers consistent switching performance with excellent durability in demanding machine environments.

This model features a short roller lever actuator, providing smooth actuation with reduced mechanical wear. The roller design ensures reliable operation in cam-driven or sliding applications, making it ideal for repetitive motion systems where longevity and precision are essential.

With a SPDT (1 NO + 1 NC) contact configuration and fast snap-action switching mechanism, the MF45 ensures dependable electrical control across both AC and DC circuits, supporting a wide range of industrial automation applications.

Key Advantages

  • Compact snap-action microswitch for industrial automation.
  • Short roller lever actuator for smooth and precise actuation.
  • Reduced friction and wear compared to plunger designs.
  • SPDT contact configuration for flexible control circuits.
  • High mechanical durability for long service life.
  • Suitable for both AC and DC switching applications.

Key Features

  • Pizzato MF series microswitch.
  • Snap-action switching mechanism.
  • Short roller lever actuator for cam-driven movement.
  • 1 NO + 1 NC (SPDT changeover contact).
  • Faston terminals for secure and quick wiring.
  • Compact thermoplastic housing for industrial use.
  • High cycle life (approx. 10 million operations).

Reliable Roller Lever Switching for Industrial Control

The Pizzato MF45 uses a snap-action mechanism to deliver rapid and consistent switching performance, ensuring clean electrical transitions even under high-frequency operation. The short roller lever actuator minimises friction and improves durability, making it suitable for repetitive cam-driven movements and sliding contacts.

Its compact design allows easy integration into machinery while maintaining accurate switching points and long-term reliability in industrial environments.

Typical Applications

  • End-of-travel detection in industrial machinery.
  • Cam-driven automation systems.
  • Packaging and production equipment.
  • Conveyors and material handling systems.
  • Mechanical limit detection in moving assemblies.
  • OEM machine building and automation integration.

Technical Specifications

Series MF Series
Product type Snap-action microswitch
Actuator type Short roller lever
Contact configuration SPDT (1 NO + 1 NC)
Switching method Snap-action
Rated load (AC) up to 16 A at 250 V AC
Rated load (DC) up to 6 A at 24 V DC
Thermal current (Ith) 16 A
Mechanical durability approx. 10 million cycles
Operating temperature −25 °C to +85 °C
Housing material Glass-reinforced thermoplastic
Connection type Faston terminals
Mounting Panel / mechanical mounting
HS Code 85369095
Contacts 1NO + 1NC + 1 C/O
Actuator Type Roller lever
Housing Material Plastic

Frequently Asked Questions

What is the Pizzato MF45 used for?

This microswitch is used for position detection, end-of-travel sensing and control switching in industrial automation systems.

What is the advantage of the short roller lever?

The short roller lever provides smooth actuation with reduced wear, making it ideal for cam-driven or sliding mechanical systems.

What contact configuration does the MF45 have?

It features a SPDT (1 NO + 1 NC) contact configuration for flexible switching control.

What loads can this microswitch handle?

The MF45 supports up to 16 A at 250 V AC and 6 A at 24 V DC.

Is the MF45 suitable for high-cycle applications?

Yes, it is designed for durability with a mechanical life of approximately 10 million operations.

Trusted by Automation Engineers Worldwide

Pizzato MF series microswitches are trusted globally for their precision engineering, durability and consistent switching performance in industrial automation systems.
