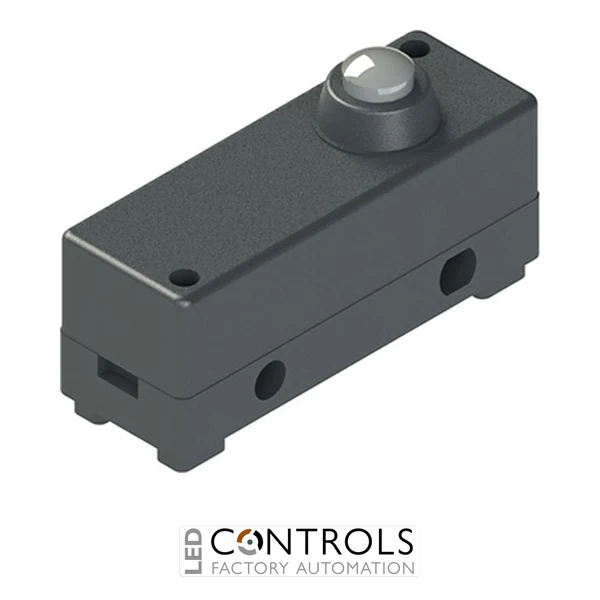

Pizzato MS05 snap-action microswitch with short plunger actuator, SPDT contacts and high current rating for industrial automation and control applications.
£5.41
The Pizzato MS05 is a compact and high-performance snap-action microswitch with short plunger actuator, designed for precise position detection and switching in industrial automation and control systems. As part of the reliable Pizzato MS series, it delivers fast response, consistent switching performance and long mechanical life in demanding environments.
This model features a short plunger actuator, ideal for applications requiring low travel actuation and high precision. Its compact form factor allows easy integration into machinery, control panels and electromechanical assemblies where space is limited.
With snap-action changeover contacts (SPDT), the MS05 ensures rapid switching and reliable electrical performance. It supports both AC and DC loads, making it suitable for a wide range of industrial applications.
The MS05 microswitch is engineered for applications requiring accurate and repeatable switching. Its short plunger actuator enables precise triggering from cams, guides and mechanical movements, making it ideal for automation systems, machinery and control panels.
Its snap-action mechanism ensures fast contact transition, reducing electrical arcing and improving overall system reliability in industrial environments.
| Current | 16 A |
|---|---|
| Series | MS Series |
| Product type | Snap-action microswitch with short plunger |
| Contact configuration | 1 NO + 1 NC (SPDT) |
| Rated voltage (AC) | up to 250 V AC |
| Rated current (AC) | up to 16 A |
| Rated voltage (DC) | up to 24 V DC |
| Rated current (DC) | up to 6 A |
| Switching method | ON-(ON) |
| Connection type | Solder terminals |
| Dimensions | approx. 49.2 × 17.4 × 21 mm |
| Operating temperature | -25°C to +85°C |
| Mechanical durability | approx. 10 million cycles |
| Operating force | approx. 3.4 N |
| HS Code | 85369095 |
The MS05 is used for position detection and switching in industrial machinery and automation systems.
It uses a short plunger actuator, suitable for precise linear actuation with minimal travel.
The MS05 features 1 normally open and 1 normally closed contact (SPDT).
It supports up to 16 A at 250 V AC and 6 A at 24 V DC.
Yes, it is designed for durability with a mechanical life of up to 10 million operations.
Pizzato microswitches are trusted globally for their durability, precision engineering and reliable performance in industrial automation and control applications.
