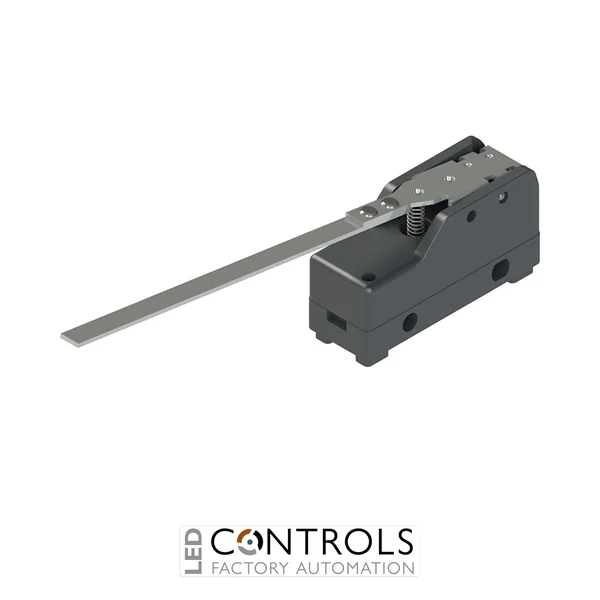

Why Choose the Pizzato MS35 Micro Limit Switch?
The Pizzato MS35 is a precision-engineered micro limit switch with long lever actuator, designed for accurate position detection in industrial automation systems. As part of the proven Pizzato MS series, it combines snap-action switching with an extended lever design, making it ideal for applications requiring low actuation force and increased mechanical reach.
The long lever enables smooth interaction with moving machine parts over a wider range, reducing stress on both the switch and the actuator surface. Built with a durable thermoplastic housing and high-quality internal contacts, the MS35 delivers consistent performance and long operational life in demanding industrial environments.
With its compact body and extended lever length, the Pizzato MS35 microswitch integrates easily into machinery, conveyors and control panels, providing reliable switching performance for both control and signalling applications.
Key Advantages
- Long lever actuator provides extended reach and reduced actuation force.
- Snap-action switching ensures fast and reliable response.
- High electrical rating suitable for industrial control circuits.
- Reduced mechanical wear due to smooth lever operation.
- Compact housing for easy integration into tight spaces.
- Reliable performance in demanding industrial environments.
Key Features
- Pizzato MS series microswitch.
- Long lever actuator (approx. 150 mm).
- SPDT contact configuration (1 NO + 1 NC).
- Snap-action changeover contacts.
- Rated up to 16 A at 250 V AC.
- Supports 6 A at 24 V DC.
- Available with solder terminals.
The Pizzato MS35 is equipped with a long lever actuator, allowing detection of movement over a greater distance while reducing the force required for actuation. This makes it particularly suitable for applications where delicate or low-force triggering is required.
Its snap-action mechanism ensures rapid switching with minimal contact wear, while the extended lever improves mechanical flexibility and reliability in high-cycle industrial environments. The MS35 features a standard SPDT configuration with changeover contacts for versatile circuit integration.
Typical Applications
- Position detection in industrial machinery.
- Conveyor and material handling systems.
- Automation and control panels.
- Packaging and production equipment.
- Machine safety and interlocking systems.
- OEM machinery and custom-built equipment.
