Why Choose the Pizzato NAB110AB-SMKW5 Limit Switch?

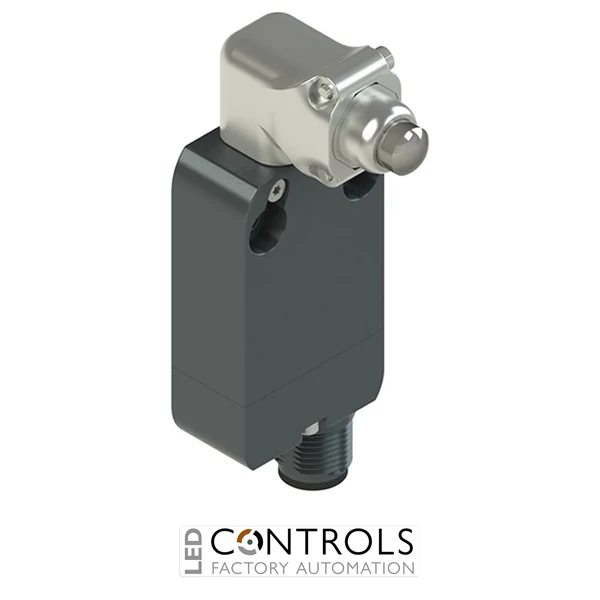

The Pizzato NAB110AB-SMKW5 is a robust modular limit switch with M12 connector, designed for accurate position detection and reliable safety switching in industrial automation systems. As part of the proven Pizzato NA series, it delivers long mechanical life, durable metal construction and consistent performance in demanding environments.
This model features a 1 NO + 1 NC snap-action contact configuration with positive opening, ensuring safe operation in safety circuits. It includes a plunger actuator with 90° transmission (AB variant) and a 5-pin M12 connector (SMKW5), allowing flexible mounting orientation and fast, secure plug-in wiring.
With its compact footprint and connector-based design, the NAB110AB-SMKW5 is ideal for applications requiring quick installation, easy maintenance and high reliability.
Key Features
- Pizzato NA series modular limit switch.
- 1 NO + 1 NC snap-action contacts (B11).
- Positive opening operation for safety circuits.
- Plunger actuator with 90° transmission (AB).
- M12 5-pin connector (SMKW5) for plug-in wiring.
- Metal housing for high durability.
- IP67 / IP69K protection rating.
- 20 mm fixing centres for standard mounting.
Flexible Mounting with 90° Transmission
The AB actuator design incorporates a 90° transmission mechanism, allowing the plunger movement to be redirected. This makes the switch ideal for installations where space constraints or mechanical layouts require alternative actuation angles.
Combined with positive opening contacts and snap-action switching, the switch ensures fast response and safe disconnection even under fault conditions.
Typical Applications
- Machine guarding and safety interlock systems.
- Industrial conveyors and automation lines.
- Packaging and production machinery.
- OEM equipment with modular wiring systems.
- Applications requiring angled actuation.
