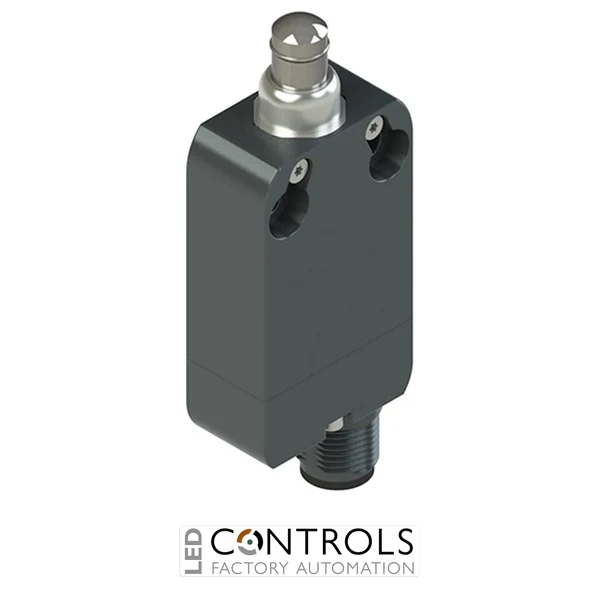

NA B110AC-SMK Pizzato Modular prewired switch with long plunger

NA B110AC-SMK Pizzato Modular prewired switch with long plunger

Pizzato NAB110AC-SMK modular limit switch with 1 NO + 1 NC snap-action contacts, long plunger actuator and M12 connector interface.

SKU: NAB110AC-SMKAlt SKU: NAB110ACSMKMPN: NA B110AC-SMK
Price
List Price £21.61 ex VAT
Your Price (ex VAT)
£21.61
Manufacturer Lead Time Standard Manufacturer Lead Time 5-6 Weeks, Call For Express Delivery Options
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £21.61
Trade pricing is personalised to your account

Manufacturer Lead Time

£21.61

Why Choose the Pizzato NAB110AC-SMK Limit Switch?

The Pizzato NAB110AC-SMK is a rugged modular limit switch with connector interface, designed for precise position detection and reliable safety switching in industrial automation systems. As part of the proven Pizzato NA series, it offers durable metal construction, long mechanical life and dependable performance in demanding environments.

This model features a 1 NO + 1 NC snap-action contact configuration with positive opening, ensuring safe disconnection in safety circuits. It includes a long plunger actuator (AC variant) and an M12 5-pin connector (SMK), enabling fast, secure and modular wiring without fixed cables.

With its compact design and connector-based interface, the NAB110AC-SMK is ideal for machinery requiring quick installation, easy replacement and reduced downtime.

Key Features

  • Pizzato NA series modular limit switch.
  • 1 NO + 1 NC snap-action contacts (B11 configuration).
  • Positive opening operation for safety circuits.
  • Long plunger actuator (AC) for extended actuation travel.
  • M12 5-pin connector (SMK) for plug-and-play wiring.
  • Metal housing with high resistance to impact and wear.
  • IP67 protection rating for industrial environments.
  • 20 mm fixing centres for standard mounting.

M12 Connector for Fast Installation

The SMK version uses a standard M12 connector, allowing quick plug-in installation and easy replacement without rewiring. This significantly reduces maintenance time and supports modular machine design.

Compared to prewired cable versions, the connector-based design improves serviceability and is ideal for applications where frequent maintenance or equipment changeover is required.

Typical Applications

  • Machine guarding and safety interlock systems.
  • Industrial conveyors and material handling equipment.
  • Packaging and automated production lines.
  • OEM machinery with modular wiring harnesses.
  • Applications requiring quick replacement and maintenance.

Technical Specifications

IP Rating IP67
Series NA Modular Limit Switch System
Product type Modular limit switch
Contact configuration 1 NO + 1 NC
Contact type Snap-action
Positive opening Yes
Actuator type Long plunger (AC)
Connection type M12 5-pin connector
Housing material Metal
Protection rating IP67
Mounting 20 mm fixing centres
Dimensions approx. 30 × 16 × 82 mm
Rated current up to 10 A (typical NA series)
Rated voltage up to 250 V AC / DC
HS Code 85369095
Contacts 1NO + 1NC
Actuator Type Plunger
Housing Material Metal
Positive Opening Yes
Connection M12 connector

Frequently Asked Questions

What is the Pizzato NAB110AC-SMK used for?

It is used for position detection and safety monitoring in industrial automation systems.

What contact configuration does this switch have?

It features 1 normally open (NO) and 1 normally closed (NC) snap-action contacts.

What does the AC variant mean?

The AC variant indicates a long plunger actuator, providing extended travel and improved tolerance to misalignment.

What does SMK mean?

SMK refers to an M12 connector interface, enabling fast plug-and-play wiring without fixed cables.

Is it suitable for safety applications?

Yes, it includes positive opening contacts, making it suitable for safety circuits.

Trusted by Industrial Engineers Worldwide

Pizzato NA series limit switches are widely trusted for their rugged construction, modular flexibility and reliable safety performance in industrial automation environments.
