Why Choose the Pizzato NAB110CP-SMK Limit Switch?

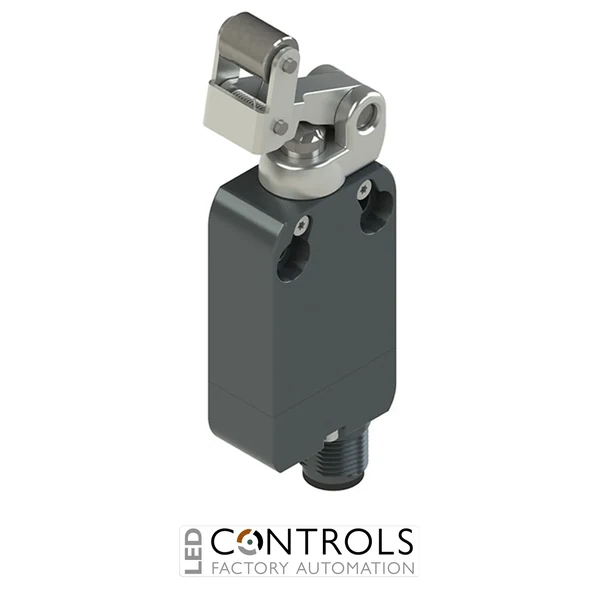

The Pizzato NAB110CP-SMK is a robust modular limit switch with M12 connector interface, engineered for precise position detection in industrial automation and safety systems. As part of the durable Pizzato NA series, it features a solid metal housing and a unidirectional roller lever actuator, delivering consistent and controlled actuation in demanding environments.
This version is equipped with a 5-pole M12 connector (bottom entry), allowing quick installation, simplified wiring and easy replacement during maintenance. This connector-based design is ideal for modern modular machinery and industrial systems requiring fast servicing and minimal downtime.
With a 1 normally open (NO) and 1 normally closed (NC) contact configuration, snap-action switching and positive opening contacts, the NAB110CP-SMK ensures fast and reliable electrical performance. The unidirectional actuator enables switching only from a defined direction, improving operational accuracy and preventing unintended activation.
Key Advantages
- Durable metal housing for long service life in industrial environments.
- Unidirectional roller lever actuator for precise directional switching.
- M12 connector interface enables fast installation and easy maintenance.
- 1NO + 1NC contacts suitable for control and safety circuits.
- Snap-action switching ensures rapid and reliable performance.
- IP67 / IP69K protection for harsh and washdown environments.
Key Features
- Pizzato NA series modular position switch.
- Unidirectional roller lever actuator for directional sensing.
- 1NO + 1NC snap-action contacts.
- 5-pole M12 connector (bottom entry).
- Positive opening mechanism for safety circuits.
- Metal enclosure with high mechanical strength.
- 20 mm mounting hole interaxis.
- Designed for quick replacement and modular installations.
Connector-Based Position Detection for Modern Automation
The NAB110CP-SMK is designed for efficient position detection in modular industrial systems. The integrated M12 connector allows quick plug-in wiring, reducing installation time and enabling fast replacement during maintenance operations.
The unidirectional roller lever ensures controlled actuation, improving system precision while reducing unwanted switching events. Its snap-action contacts deliver reliable electrical performance in both control and safety circuits.
Typical Applications
- Industrial conveyors and material handling systems.
- Packaging and processing machinery.
- Machine tool position monitoring.
- Automated assembly lines.
- Safety interlocking systems.
- Modular automation systems requiring quick-connect devices.
