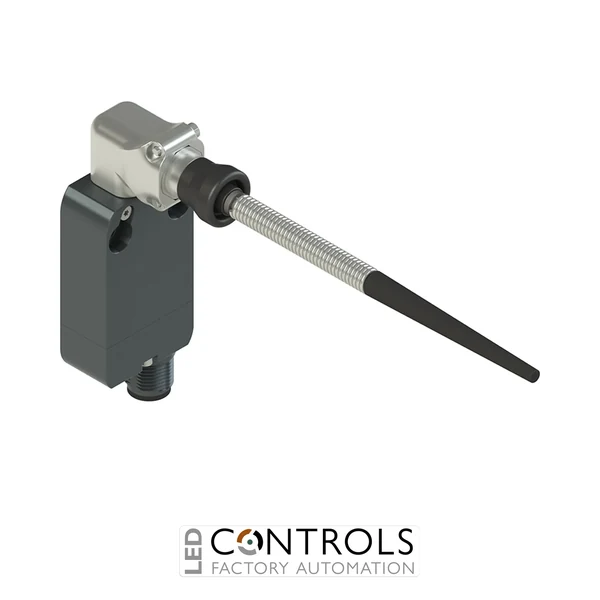

Why Choose the Pizzato NAB110HB-SMKW5 Limit Switch?
The Pizzato NAB110HB-SMKW5 is a high-performance modular pre-wired limit switch from the proven Pizzato NA series, engineered for accurate position detection in industrial automation and machinery systems. Featuring a durable metal housing and precision components, it ensures reliable operation and long service life in demanding environments.
This model is equipped with snap-action contacts in a 1 NO + 1 NC configuration, delivering dependable switching for both control and safety circuits. The spring rod actuator with plastic pin and integrated 90° transmission block enables flexible mounting and consistent actuation, even in tight or complex machine layouts.
The NAB110HB-SMKW5 features a bottom-entry M12 metal connector (5-pole), providing secure and vibration-resistant electrical connections. With high ingress protection rated IP67 and IP69K, it is well suited to harsh industrial environments including dust, moisture and washdown applications.
Key Advantages
- Rugged metal housing for industrial durability.
- 1 NO + 1 NC snap-action contacts for versatile control and safety circuits.
- Spring rod actuator with 90° transmission for flexible installation.
- M12 5-pole connector ensures reliable and secure wiring.
- IP67 / IP69K protection for harsh environments.
- Standard 20 mm mounting centres for easy integration.
Key Features
- Pizzato NA series modular limit switch.
- Snap-action switching mechanism.
- Contact configuration: 1 NO + 1 NC.
- Actuator type: Spring rod with plastic pin and 90° transmission block.
- Connector type: M12 metal connector, 5-pole, bottom entry.
- High ingress protection: IP67 and IP69K.
- Silver alloy contacts for reliable conductivity.
- Designed for industrial automation and safety systems.
Reliable Position Detection for Industrial Machinery
Limit switches such as the Pizzato NAB110HB-SMKW5 are essential for detecting the position of moving components and providing feedback to control systems. This ensures safe machine operation, improves automation precision and reduces mechanical wear.
The NA series is widely used by OEM machine builders and automation engineers due to its durability, modular design and ability to perform reliably in harsh environments including dust, water and high-pressure cleaning conditions.
Typical Applications
- Industrial automation and machinery.
- Position detection and monitoring systems.
- Conveyors and material handling equipment.
- Packaging and production machinery.
- Safety interlocking systems.
- OEM machine building and control panels.
