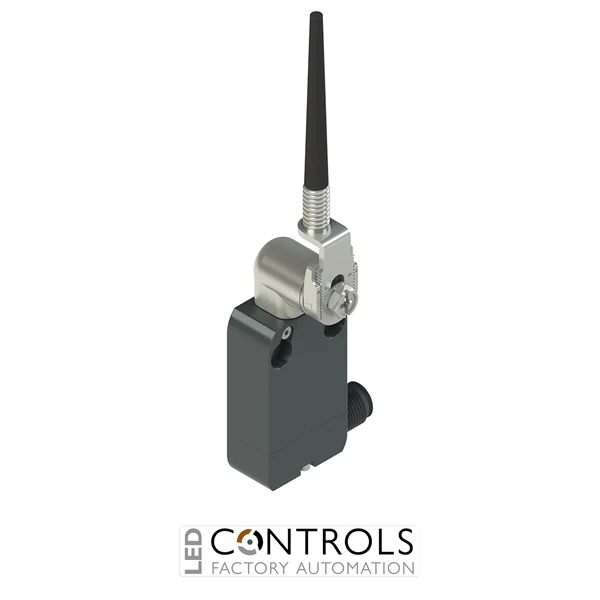

NA B112LL-DMK Pizzato Modular prewired switch with metal revolving lever with flexible adjustable rod

Q: What is the contact configuration?

The switch features 1 normally open (NO) and 1 normally closed (NC) snap-action contacts.

Q: What connection type does it use?

This model uses a 5-pole M12 connector for secure industrial wiring.

Pizzato NAB112LL-DMK modular prewired limit switch with metal revolving lever and flexible spring rod, featuring 1 NO + 1 NC snap-action contacts and M12 connector.

SKU: NAB112LL-DMKAlt SKU: NAB112LLDMKMPN: NA B112LL-DMK

List Price £25.68 ex VAT

Your Price (ex VAT)

£25.68

Manufacturer Lead Time Standard Manufacturer Lead Time 5-6 Weeks, Call For Express Delivery Options

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £25.68

Trade pricing is personalised to your account

Manufacturer Lead Time

£25.68

Why Choose the Pizzato NAB112LL-DMK Limit Switch?

The Pizzato NAB112LL-DMK is a high-performance modular prewired limit switch designed for accurate position detection and dependable switching in industrial automation systems. As part of the durable Pizzato NA series, it provides long service life, high mechanical resistance and consistent operation in demanding environments.

This model features a metal revolving lever with a flexible adjustable spring rod, allowing adaptable actuation for applications where variable contact positioning is required. Its rugged metal housing ensures excellent resistance to vibration, impact and harsh industrial conditions.

Equipped with a right-side M12 connector (5-pole), the NAB112LL-DMK enables fast, secure and standardised industrial wiring. The 1 NO + 1 NC snap-action contact configuration ensures rapid and reliable switching performance for automation and safety circuits.

Key Advantages

Heavy-duty limit switch for industrial position detection.
Flexible spring rod actuator for adaptable and precise actuation.
1 NO + 1 NC snap-action contacts for fast, reliable switching.
M12 connector interface for secure industrial connectivity.
Durable metal housing ensures long operational life.
Reliable performance in harsh industrial environments.

Key Features

Pizzato NA series modular position switch.
Flexible adjustable spring rod actuator.
Metal revolving lever mechanism for versatile actuation.
Snap-action contact block (1 NO + 1 NC).
M12 connector (right-side entry, 5-pole).
20 mm mounting hole spacing for standard installation.
Designed for industrial automation and machine safety systems.

Flexible Position Detection for Industrial Systems

Limit switches such as the NAB112LL-DMK are essential for detecting machine movement and ensuring safe operation. The flexible spring rod actuator allows adaptable contact with moving parts, making it ideal for irregular surfaces or variable motion paths.

The NA series modular design enables actuator heads to be replaced without rewiring, helping reduce maintenance time and improve uptime in industrial automation systems.

Typical Applications

Industrial machinery position detection.
Automation and control systems.
Conveyor and material handling equipment.
Safety interlocking and monitoring circuits.
Packaging and production machinery.
OEM machine building and integration.

Technical Specifications

IP Rating	IP67
Series	NA Series
Product type	Modular prewired limit switch
Actuator type	Metal revolving lever with flexible spring rod
Contact configuration	1 NO + 1 NC snap action
Connection type	M12 connector (5-pole, right side)
Housing material	Metal
Mounting	20 mm fixing centres
Protection rating	IP67 / IP69K
Standards	IEC 60947-5-1 compliant
HS Code	85369095
Contacts	1NO + 1NC
Actuator Type	Spring rod / wobble stick
Housing Material	Metal
Connection	M12 connector

Frequently Asked Questions

What is the Pizzato NAB112LL-DMK used for?

This limit switch is used for detecting mechanical position and controlling movement limits in industrial automation systems.

What type of actuator does this model use?

It uses a metal revolving lever with a flexible adjustable spring rod, ideal for adaptable actuation points.

What is the contact configuration?

The switch features 1 normally open (NO) and 1 normally closed (NC) snap-action contacts.

What connection type does it use?

This model uses a 5-pole M12 connector for secure industrial wiring.

Is it suitable for harsh environments?

Yes, the metal housing and IP67/IP69K protection rating make it suitable for demanding industrial conditions.
