Why Choose the Pizzato NA B120GB-DN5 Modular Limit Switch?

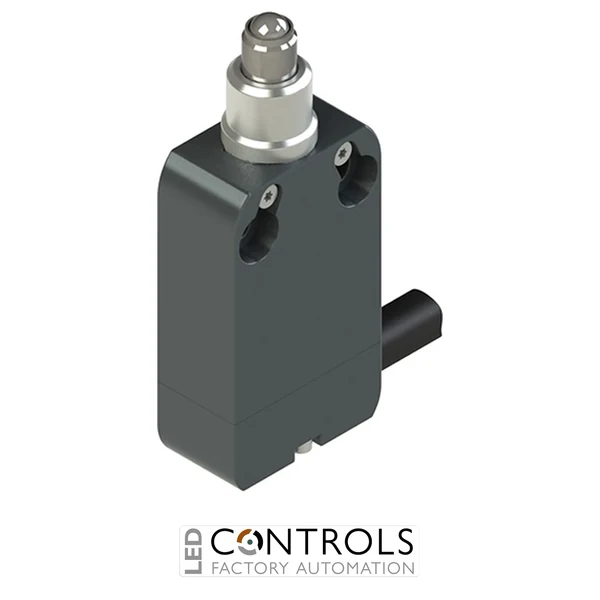

The Pizzato NA B120GB-DN5 is a heavy-duty modular pre-wired limit switch with spherical plunger actuator, engineered for accurate and repeatable position detection in industrial automation and safety systems. As part of the rugged Pizzato NA series, it features a robust metal housing and precision snap-action contacts for dependable long-term operation.
This model incorporates a plunger actuator with a Ø6 mm spherical tip, providing smooth linear actuation while minimising wear on both the switch and contacting surfaces. It is ideal for applications requiring direct mechanical actuation with high repeatability.
Supplied with a 5 metre pre-wired PVC cable, the NA B120GB-DN5 simplifies installation and reduces wiring time. Its 1 NO + 2 NC contact configuration makes it particularly suitable for safety circuits requiring redundant normally closed contacts.
Key Advantages
- Spherical plunger actuator ensures precise and consistent switching.
- 1 NO + 2 NC contacts ideal for safety-related applications.
- Pre-wired 5 m cable reduces installation time and complexity.
- Metal housing construction for harsh industrial environments.
- Snap-action switching provides fast and reliable response.
- Compact modular design with standard 20 mm mounting centres.
Key Features
- Pizzato NA series modular limit switch.
- Plunger actuator with Ø6 mm spherical tip.
- Contact configuration: 1 NO + 2 NC.
- Snap-action contact system.
- Integrated 5 m PVC cable (IEC 60332-1 compliant).
- Right-side cable exit configuration.
- Silver alloy contacts for reliable conductivity.
Precision Plunger for Linear Actuation
The NA B120GB-DN5 is designed for applications requiring accurate linear actuation. The spherical plunger reduces friction and mechanical stress, improving durability and ensuring consistent switching even in high-cycle industrial machinery.
Its snap-action switching mechanism delivers fast electrical response with minimal contact wear, while the NA series modular design provides flexibility for integration into a wide range of industrial automation systems.
Typical Applications
- Industrial machinery position detection.
- Machine safety interlocking systems.
- Conveyor and material handling systems.
- Packaging and production equipment.
- Automated assembly lines.
- OEM machinery and control panels.
