Why Choose the Pizzato NAB220AA-SMK Limit Switch?

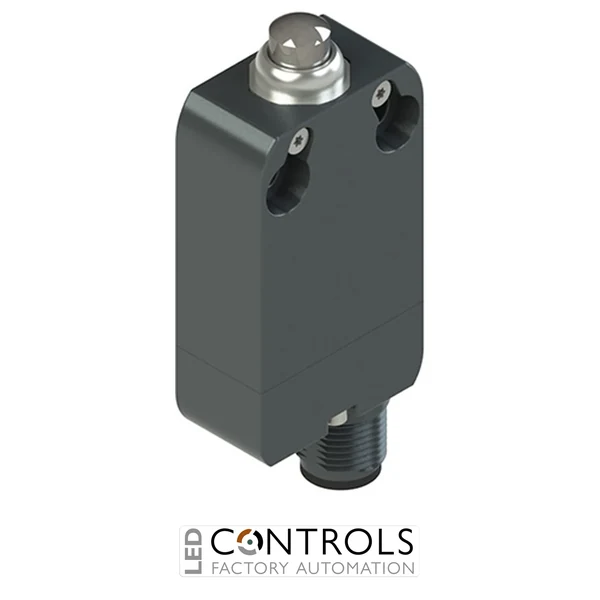

The Pizzato NAB220AA-SMK is a heavy-duty modular prewired limit switch, engineered for precise position detection and advanced safety monitoring in industrial automation systems. As part of the robust Pizzato NA series, it delivers reliable switching performance, flexible installation and long operational life in demanding environments.
This model features a 2 NO + 2 NC snap-action contact configuration with positive opening, ensuring safe disconnection and dependable operation in safety-critical circuits. It is equipped with a short plunger actuator and a bottom-entry M12 connector (SMK), allowing fast, secure and vibration-resistant connection in modern control systems.
With its rugged metal housing and high ingress protection, the NAB220AA-SMK is ideal for machine builders and automation engineers requiring multi-contact switching and reliable plug-and-play installation.
Key Advantages
- 2 NO + 2 NC contact configuration for complex control logic.
- Positive opening contacts for enhanced safety compliance.
- M12 connector (SMK) for fast and secure installation.
- Compact design with short plunger actuator.
- IP67 / IP69K protection for harsh industrial environments.
- Heavy-duty metal housing for industrial durability.
Key Features
- Pizzato NA series modular prewired limit switch.
- 2 NO + 2 NC snap-action contacts (B22 configuration).
- Positive opening operation for safety circuits.
- Short plunger actuator for direct actuation.
- M12 connector (bottom entry) for quick connection.
- Metal housing with high resistance to impact and wear.
- IP67 / IP69K rated for dust-tight and washdown environments.
- 20 mm fixing centres for standard mounting.
Plug-and-Play Installation with Multi-Contact Control
The Pizzato NAB220AA-SMK is designed for modern industrial automation where fast installation and reliability are essential. The M12 connector enables quick plug-in wiring, reducing installation time and minimising wiring errors while maintaining a secure electrical interface.
Its 2 NO + 2 NC snap-action contacts allow simultaneous control and monitoring of machine states, making it ideal for safety circuits, interlocks and complex automation systems.
Typical Applications
- Machine guarding and safety interlock systems.
- Industrial conveyors and material handling equipment.
- Packaging and automated production lines.
- Position detection in multi-stage machinery.
- OEM automation systems and control panels.
- Applications requiring fast-connect wiring solutions.
