Why Choose the Pizzato NAG022KF-SMK Limit Switch?
The Pizzato NAG022KF-SMK is a robust modular limit switch with M12 connector, engineered for precise position detection and reliable switching in industrial automation systems. As part of the proven Pizzato NA series, it features a durable metal housing and high-quality internal components designed for long-term operation in demanding environments.

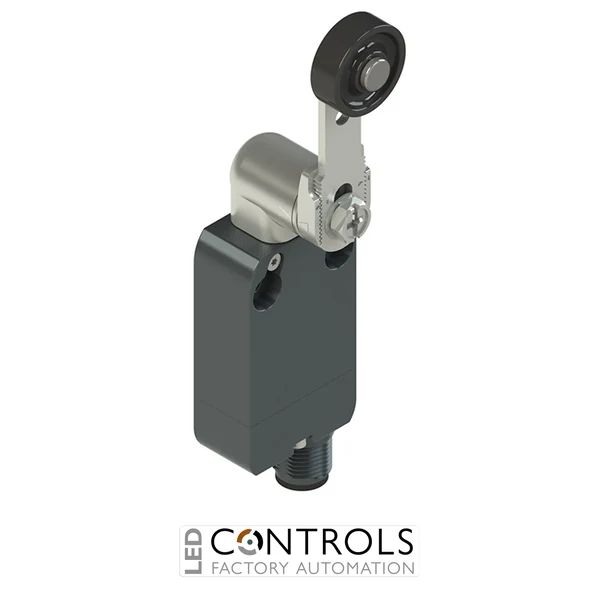

This model is equipped with a 2NC slow-action contact configuration with positive opening operation, making it ideal for safety-critical circuits requiring fail-safe behaviour. It includes an adjustable straight metal revolving lever with a 20 mm roller, ensuring accurate and repeatable actuation across a wide range of machinery applications.
The NAG022KF-SMK features a bottom-entry M12 connector, allowing fast installation and simplified maintenance without rewiring. With a rugged design, 20 mm fixing centres and industrial-grade construction, it integrates easily into conveyors, production lines and automated systems requiring reliable position monitoring.
Key Advantages
- Reliable limit switch for industrial position detection.
- 2NC slow-action contacts for safety-focused applications.
- Positive opening mechanism ensures fail-safe operation.
- M12 connector interface for quick installation and replacement.
- Adjustable metal revolving lever with roller for precise actuation.
- Durable metal housing for harsh industrial environments.
Key Features
- Pizzato NA series modular limit switch.
- 2NC contact configuration.
- Slow-action switching mechanism.
- Positive opening safety function.
- Adjustable straight metal lever with 20 mm roller.
- M12 connector (bottom entry) for fast electrical connection.
- Metal housing with 20 mm fixing centres.
Engineered for Safety-Critical Machine Monitoring
Limit switches such as the NAG022KF-SMK are essential in industrial automation systems, providing accurate feedback on machine movement and positioning. The slow-action contacts ensure controlled switching behaviour, while the positive opening mechanism guarantees safe disconnection in safety circuits.
The Pizzato NA series is widely used in high-cycle industrial environments due to its rugged construction and reliable switching performance, ensuring consistent operation even in demanding conditions.
Typical Applications
- Industrial machinery and automation systems.
- Machine guarding and safety circuits.
- Conveyor and material handling equipment.
- Position detection in production lines.
- Packaging and processing machinery.
- OEM machine building and integration.
