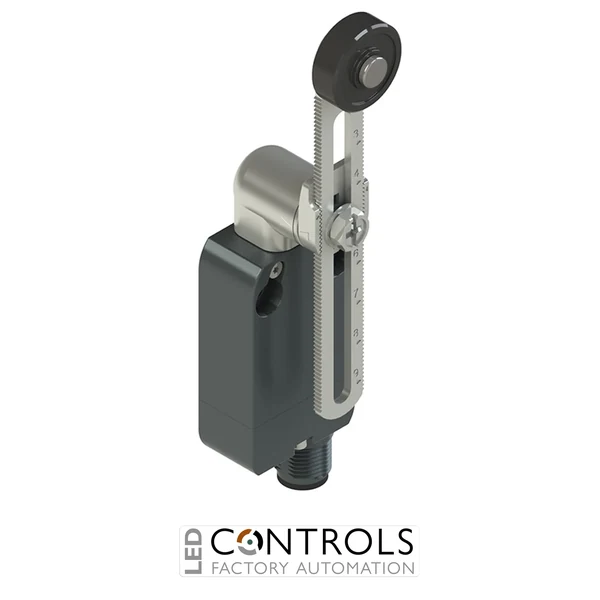

NA G022KP-SMK Pizzato Modular prewired switch with adjustablelength straight metal revolving lever diam. 20 roller

Q: What contact configuration does this model have?

The NAG022KP-SMK features 2 normally closed contacts, ideal for fail-safe safety circuits.

Q: What type of switching does it use?

This model uses slow-action contacts, providing controlled switching behaviour.

Q: What type of connection does it use?

It uses a bottom-entry M12 connector for secure and efficient industrial wiring.

Pizzato NAG022KP-SMK modular safety limit switch with adjustable metal lever, 20 mm roller, 2 NC slow-action contacts and M12 connector.

SKU: NAG022KP-SMKAlt SKU: NAG022KPSMKMPN: NA G022KP-SMK

List Price £25.85 ex VAT

Your Price (ex VAT)

£25.85

Manufacturer Lead Time Standard Manufacturer Lead Time 5-6 Weeks, Call For Express Delivery Options

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £25.85

Trade pricing is personalised to your account

Manufacturer Lead Time

£25.85

Why Choose the Pizzato NAG022KP-SMK Safety Limit Switch?

The Pizzato NAG022KP-SMK is a compact and highly reliable modular prewired safety limit switch from the robust Pizzato NA series, engineered for accurate position detection and dependable switching in industrial automation systems. Its durable metal housing ensures long service life and consistent performance in demanding environments.

This model features an adjustable straight metal revolving lever with Ø20 mm roller, allowing flexible installation and precise actuation of moving machine components. The extended adjustment range provides excellent adaptability for different machine geometries and positioning requirements.

Equipped with a 2 NC slow-action contact configuration and positive opening safety contacts, the NAG022KP-SMK is specifically designed for fail-safe safety circuits. It incorporates a bottom-entry M12 connector, ensuring fast, secure and vibration-resistant wiring in industrial control systems.

Key Advantages

Reliable safety limit switch for industrial automation.
2 NC contacts for fail-safe safety circuit design.
Slow-action switching for controlled actuation.
M12 connector for quick and secure installation.
Adjustable straight metal lever for flexible positioning.
Durable metal housing for harsh industrial environments.

Key Features

Pizzato NA series modular prewired limit switch.
2 NC slow-action contacts with positive opening.
Adjustable straight metal revolving lever with Ø20 mm roller.
M12 connector (bottom entry) for industrial wiring.
Metal housing with 20 mm fixing centres.
IP67 / IP69K protection rating for demanding environments.
Head designed for revolving lever actuators.

Reliable Safety Control for Industrial Machinery

Safety limit switches such as the NAG022KP-SMK are critical components in machine safety systems. They detect the position of moving components and provide electrical feedback to control systems, helping prevent hazardous conditions and ensuring safe operation.

The Pizzato NA series is widely used in industrial automation due to its precision engineering, rugged construction and dependable switching performance. Its modular design allows flexible integration into a wide range of machinery and safety applications.

Typical Applications

Machine guarding and safety interlock systems.
Position detection in automated machinery.
Conveyor and material handling systems.
Packaging and production equipment.
Industrial automation and OEM machinery.
Fail-safe safety circuits using normally closed contacts.

Technical Specifications

IP Rating	IP67
Series	NA Series
Product type	Safety limit switch
Contact configuration	2 NC
Contact type	Slow action with positive opening
Actuator	Adjustable straight metal revolving lever with Ø20 mm roller
Connection	M12 connector (bottom entry)
Housing	Metal construction
Mounting	20 mm fixing centres
Protection rating	IP67 (EN 60529) / IP69K (ISO 20653)
Positive opening	Yes
Operating temperature	approx. -25 to +80 °C
Switching function	Slow-action
HS Code	85369095
Contacts	2NC
Actuator Type	Roller lever
Housing Material	Metal
Positive Opening	Yes
Connection	M12 connector

Frequently Asked Questions

What is the Pizzato NAG022KP-SMK used for?

This switch is used for position detection and safety monitoring in industrial machinery and automation systems.

What contact configuration does this model have?

The NAG022KP-SMK features 2 normally closed contacts, ideal for fail-safe safety circuits.

What type of switching does it use?

This model uses slow-action contacts, providing controlled switching behaviour.

What type of connection does it use?

It uses a bottom-entry M12 connector for secure and efficient industrial wiring.

Is it suitable for harsh environments?

Yes, the metal housing and IP67/IP69K protection ratings make it suitable for demanding industrial environments.

Trusted by Industrial Automation Engineers

Pizzato NA series limit switches are trusted worldwide for delivering precise position detection, long service life and dependable performance in safety-critical industrial environments.
