Why Choose the Pizzato NAG110AB-DMK Limit Switch?

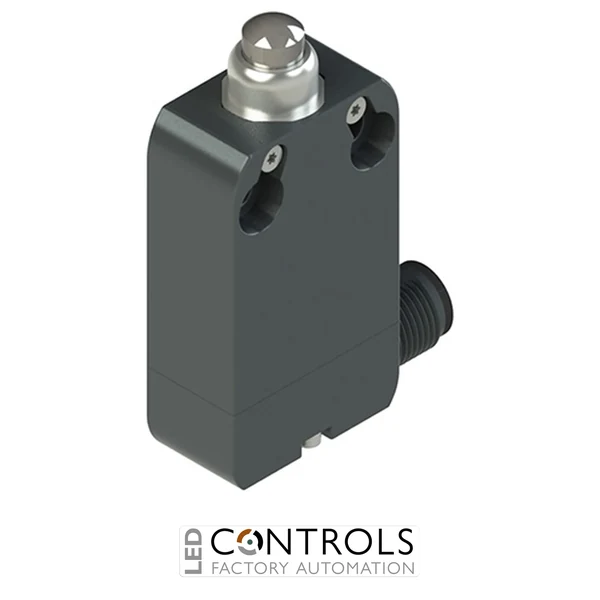

The Pizzato NAG110AB-DMK is a robust and precision-engineered modular prewired limit switch, designed for accurate position detection and reliable safety switching in industrial automation systems. As part of the proven Pizzato NA series, it offers long-term durability, flexible installation and dependable performance in demanding environments.
This model features a 1 NO + 1 NC slow-action contact configuration with positive opening, ensuring safe disconnection in safety-critical circuits. It is equipped with a plunger actuator and an M12 connector (DMK), enabling fast, secure and vibration-resistant electrical connection for modern automation systems.
With its rugged metal housing and high ingress protection, the NAG110AB-DMK is ideal for machine builders and industrial engineers requiring a compact and reliable switching solution.
Key Advantages
- 1 NO + 1 NC contact configuration for versatile control.
- Slow-action contacts for stable and controlled switching.
- Positive opening contacts for enhanced safety compliance.
- M12 connector for quick and secure installation.
- Compact design with plunger actuator.
- Heavy-duty metal housing for industrial durability.
Key Features
- Pizzato NA series modular prewired limit switch.
- 1 NO + 1 NC slow-action contacts (G11 configuration).
- Positive opening operation for safety circuits.
- Plunger actuator for direct mechanical actuation.
- M12 connector (DMK) for plug-and-play wiring.
- Metal housing with high resistance to impact and wear.
- IP67 / IP69K protection rating for harsh environments.
- 20 mm fixing centres for standard mounting.
Controlled Switching with Secure Connectivity
The Pizzato NAG110AB-DMK uses a slow-action switching mechanism, providing controlled and stable operation for applications where precise signal timing is essential. This makes it suitable for automation systems requiring consistent switching behaviour and reliable feedback.
The integrated M12 connector enables fast installation and reduces wiring complexity, improving efficiency and reliability in industrial control panels and machinery.
Typical Applications
- Machine guarding and safety interlock systems.
- Industrial conveyors and material handling equipment.
- Packaging and automated production lines.
- Position detection in industrial machinery.
- OEM automation systems and control panels.
- Applications requiring secure plug-in wiring.
