Why Choose the Pizzato NAG110EB-DMK Limit Switch?

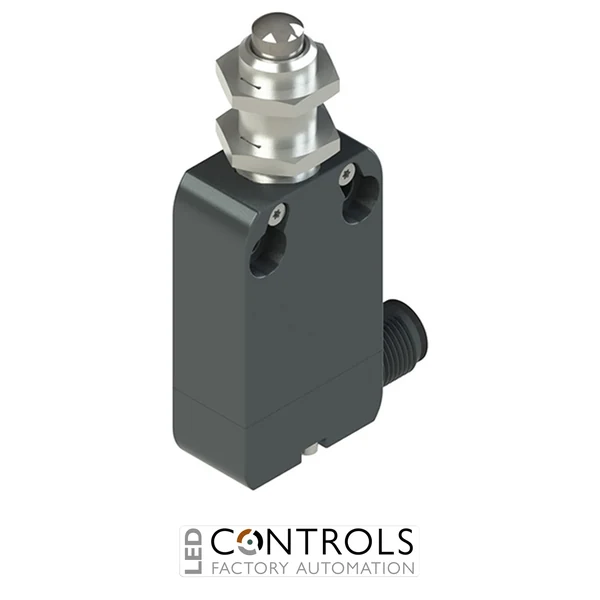

The Pizzato NAG110EB-DMK is a robust modular limit switch with plunger actuator and M12 connector, engineered for accurate position detection in industrial automation and safety systems. As part of the durable Pizzato NA series, it features a heavy-duty metal housing and a precision plunger with M12 threaded bearing, making it ideal for applications requiring direct linear actuation.
This model includes a 5-pole M12 connector, allowing fast installation, simplified wiring and quick replacement during maintenance. Its connector-based design is well suited to modern modular machinery and industrial systems where uptime and efficiency are critical.
With a 1 normally open (NO) and 1 normally closed (NC) contact configuration, slow-action switching and positive opening contacts, the NAG110EB-DMK ensures stable switching performance and safe disconnection in control and safety circuits.
Key Advantages
- Durable metal housing for long-term industrial reliability.
- Plunger actuator with M12 threaded bearing for precise linear actuation.
- M12 connector interface enables fast installation and easy maintenance.
- 1NO + 1NC contacts suitable for control and safety circuits.
- Slow-action switching provides controlled and stable performance.
- IP67 / IP69K protection for harsh and washdown environments.
Key Features
- Pizzato NA series modular position switch.
- Plunger actuator with threaded M12 bearing.
- 1NO + 1NC slow-action contacts.
- 5-pole M12 connector for quick-connect wiring.
- Positive opening mechanism for safety circuits.
- Metal enclosure with high mechanical strength.
- 20 mm mounting hole interaxis.
- Right-side connector exit configuration.
Precision Plunger-Based Position Detection
The NAG110EB-DMK is designed for applications requiring direct linear actuation. The plunger ensures accurate engagement with moving components, making it ideal for compact installations where lever actuators are not suitable.
The slow-action contacts provide controlled switching behaviour, while the positive opening function ensures safe and reliable disconnection in safety-critical systems.
Typical Applications
- Machine tool position monitoring.
- Industrial conveyors and material handling systems.
- Packaging and processing machinery.
- End-of-travel detection in compact installations.
- Safety interlocking systems.
- Industrial automation systems requiring precise plunger actuation.
