Why Choose the Pizzato NAG110EE-SMK Modular Position Switch?
The Pizzato NAG110EE-SMK is a robust modular prewired position switch designed for precise and reliable position detection in industrial automation systems. As part of the heavy-duty Pizzato NA series, it delivers consistent switching performance and long service life in demanding industrial environments.

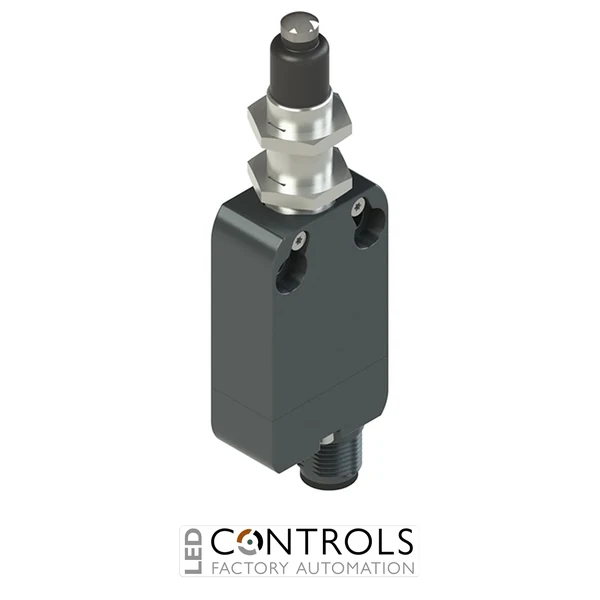

This model features a plunger actuator with M12 threaded bearing and external rubber gasket, ensuring accurate actuation while providing enhanced sealing against dust, moisture and washdown conditions. Its metal housing offers excellent resistance to mechanical stress and harsh operating conditions.
The NAG110EE-SMK is equipped with a bottom-entry M12 connector, enabling fast installation, simplified maintenance and secure electrical connections. It incorporates 1 NO + 1 NC snap-action contacts with positive opening operation, making it suitable for both control and safety circuits.
Key Advantages
- Reliable position detection for industrial machinery.
- M12 connector interface for quick and serviceable wiring.
- 1 NO + 1 NC snap-action contacts for versatile control circuits.
- External rubber gasket improves environmental sealing.
- Plunger actuator with M12 threaded bearing for precise actuation.
- Positive opening operation ensures safety compliance.
Key Features
- Pizzato NA series modular position switch.
- Snap-action contact block (1 NO + 1 NC).
- M12 connector (bottom entry) for secure electrical connection.
- Positive opening contacts for safety applications.
- Plunger actuator with threaded mounting.
- M12 threaded bearing for secure installation.
- External rubber gasket for improved protection.
- IP67 / IP69K protection rating for harsh environments.
Connector-Based Efficiency for Industrial Automation
Position switches such as the NAG110EE-SMK are essential for monitoring machine movement and ensuring safe operation. The use of a plug-in M12 connector enables faster installation, reduces wiring errors and simplifies maintenance compared to fixed cable versions.
The combination of snap-action contacts and positive opening operation ensures reliable switching and safe disconnection, making this model suitable for both automation and safety-critical applications.
Typical Applications
- Industrial machinery position monitoring.
- Safety interlocking and guard systems.
- Packaging and material handling equipment.
- Conveyor and motion detection systems.
- Automated production lines.
- OEM machine building and automation integration.
