Why Choose the Pizzato NAG110FB-DMK Modular Position Switch?
The Pizzato NAG110FB-DMK is a robust modular prewired position switch engineered for precise and reliable position detection in industrial automation and safety systems. As part of the heavy-duty Pizzato NA series, it delivers consistent switching performance and long operational life in demanding environments.

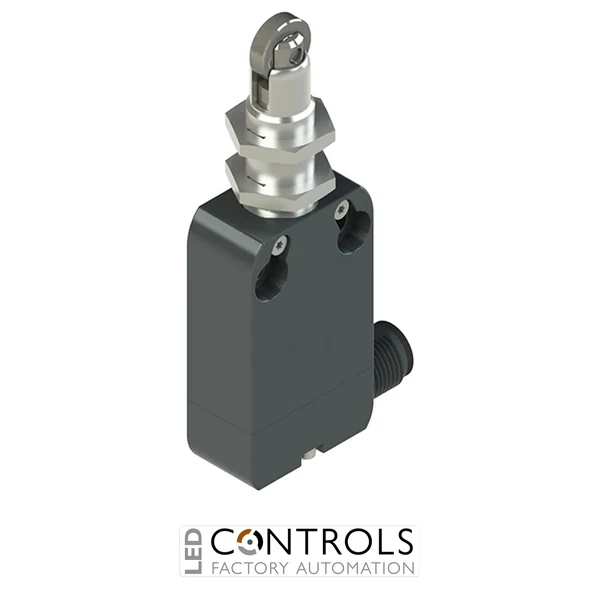

This model features a roller plunger actuator with M12 threaded bearing, providing smooth actuation and reduced mechanical wear in applications involving moving machine components. Its metal housing ensures high resistance to vibration, shock and industrial stress, making it suitable for harsh operating conditions.
Equipped with 1 NO + 1 NC snap-action contacts and a secure M12 connector interface, the NAG110FB-DMK enables fast installation, simplified maintenance and reliable electrical connection. The integrated positive opening contacts ensure safe disconnection in safety-critical circuits.
Key Advantages
- Reliable position detection for industrial machinery.
- Roller plunger actuator reduces wear and improves mechanical efficiency.
- 1 NO + 1 NC snap-action contacts for versatile control and safety circuits.
- M12 connector enables fast installation and easy maintenance.
- Positive opening operation ensures safety compliance.
- IP67 / IP69K protection for harsh industrial environments.
Key Features
- Pizzato NA series modular position switch.
- Snap-action contact block (1 NO + 1 NC).
- Roller plunger actuator with M12 threaded bearing.
- M12 connector interface (right-side connection).
- Positive opening contacts for safety applications.
- Metal housing with 20 mm fixing centres.
- Silver contacts for reliable electrical performance.
- High protection rating IP67 / IP69K.
Smooth and Reliable Actuation for Industrial Systems
Position switches such as the NAG110FB-DMK are essential for monitoring machine movement and ensuring safe operation. The roller plunger design minimises friction between moving parts, making it ideal for applications involving cams, conveyors and mechanical linkages.
The combination of snap-action contacts and positive opening operation ensures consistent switching performance and reliable disconnection, even in safety-critical applications exposed to vibration, dust and moisture.
Typical Applications
- Conveyor and material handling systems.
- Industrial machinery position monitoring.
- Safety interlocking and guard systems.
- Packaging and processing equipment.
- Automated production lines.
- OEM machine building and automation integration.
