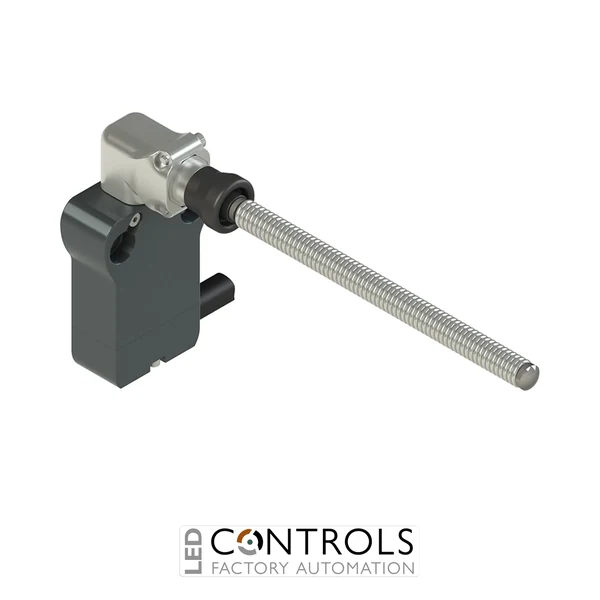

NB B220HE-DN2W5 Pizzato Modular prewired switch with spring rod 90? trasmission block

NB B220HE-DN2W5 Pizzato Modular prewired switch with spring rod 90? trasmission block

Pizzato NBB220HE-DN2W5 modular prewired limit switch with spring rod actuator and 90 degree transmission block, designed for industrial automation and position detection.

SKU: NBB220HE-DN2W5Alt SKU: NBB220HEDN2W5MPN: NB B220HE-DN2W5
Price
List Price £37.75 ex VAT
Your Price (ex VAT)
£37.75
Manufacturer Lead Time Standard Manufacturer Lead Time 5-6 Weeks, Call For Express Delivery Options
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £37.75
Trade pricing is personalised to your account

Manufacturer Lead Time

£37.75

Why Choose the Pizzato NBB220HE-DN2W5 Limit Switch?

The Pizzato NBB220HE-DN2W5 is a heavy-duty modular prewired limit switch engineered for precise position detection in demanding industrial automation environments. As part of the trusted Pizzato NB series, this model features a spring rod actuator with 90° transmission block, allowing flexible actuation where space or motion constraints exist.

Designed with a robust metal housing and high ingress protection capability, this switch is built to withstand harsh industrial conditions including dust, water and mechanical stress. Its modular construction and prewired cable configuration simplify installation and maintenance, reducing downtime in production systems.

The NBB220HE-DN2W5 is ideal for applications requiring accurate mechanical feedback and reliable switching performance, particularly in safety circuits, automated machinery and material handling systems.

Key Advantages

  • Modular prewired design reduces installation time and wiring complexity.
  • Spring rod actuator with 90° transmission enables flexible mounting and actuation.
  • Durable metal housing construction for long service life.
  • High protection levels suitable for harsh industrial environments.
  • Reliable switching performance for automation and safety systems.
  • Part of the versatile Pizzato NB series with wide configuration options.

Key Features

  • Pizzato NB series modular limit switch.
  • Spring rod actuator with 90° transmission block.
  • Prewired cable connection for fast installation.
  • Robust metal housing for industrial durability.
  • Configurable and modular design for flexible applications.
  • Suitable for continuous and repetitive mechanical operation.

Reliable Position Detection for Industrial Automation

Limit switches like the NBB220HE-DN2W5 play a critical role in automation systems by detecting the position of moving machine parts. They ensure safe operation, prevent mechanical overtravel and provide essential feedback for control systems.

The Pizzato NB series is recognised for its flexibility and robust design, offering configurable solutions that meet the requirements of modern industrial machinery and safety applications.

Typical Applications

  • Industrial machinery position monitoring.
  • Conveyor and material handling systems.
  • Packaging and production lines.
  • Safety interlocking systems.
  • Automated manufacturing equipment.
  • OEM machinery and custom automation solutions.

Technical Specifications

IP Rating IP67
Series NB Series modular prewired switches
Product type Limit switch / position switch
Actuator type Spring rod with 90° transmission block
Housing Metal housing
Connection type Prewired cable
Protection rating Up to IP67 / IP69K depending on configuration
Mounting Industrial machinery and control systems
Application Position detection and safety monitoring
HS Code 85369095
Actuator Type Spring rod / wobble stick
Housing Material Metal
Connection Pre-wired cable

Frequently Asked Questions

What is the Pizzato NBB220HE-DN2W5 used for?

This limit switch is used for detecting position and controlling movement in industrial automation and machinery systems.

What actuator type does this model use?

It uses a spring rod actuator combined with a 90° transmission block for flexible mechanical actuation.

Is the switch suitable for harsh environments?

Yes, it features a durable metal housing and high protection ratings, making it suitable for demanding industrial conditions.

Does it come prewired?

Yes, this model includes a prewired cable connection for quick and efficient installation.

What industries commonly use this switch?

It is widely used in manufacturing, packaging, material handling and machine building applications.

Trusted by Industrial Engineers Worldwide

Pizzato NB series limit switches are trusted by engineers and OEMs for delivering consistent performance, durability and reliable position detection in demanding automation environments.
