Why Choose the Pizzato NF B120HE-DN2W5 Limit Switch?

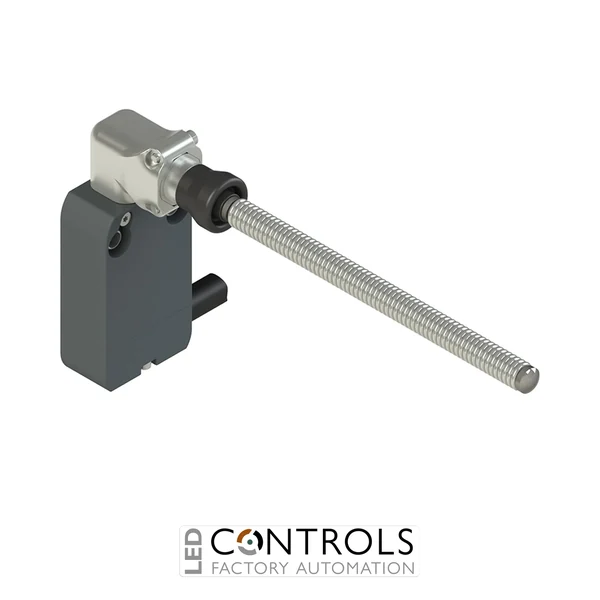

The Pizzato NF B120HE-DN2W5 is a compact and reliable modular prewired mechanical limit switch designed for accurate position detection in industrial automation, machinery and control applications. As part of the Pizzato NF series of position switches, it provides dependable switching performance with a spring rod actuator and 90° transmission block for flexible mechanical sensing in demanding industrial environments.
This switch combines a robust technopolymer housing with a snap action contact block, providing reliable operation for machine monitoring, safety circuits and industrial control applications. The prewired cable connection simplifies installation while reducing wiring time in automation systems.
The NF B120HE-DN2W5 features a 1NO+2NC snap action contact configuration with positive opening operation and a spring rod actuator with 90° transmission block, making it suitable for detecting mechanical movement, position changes and end-of-travel conditions in automated machinery.
Key Advantages
- Compact industrial limit switch designed for automation applications.
- Spring rod actuator with 90° transmission block for flexible machine sensing.
- 1NO+2NC snap action contacts for dependable switching and monitoring.
- Positive opening operation suitable for safety-related applications.
- IP67 protection rating suitable for demanding industrial environments.
- Prewired cable connection simplifies electrical installation.
Key Features
- Pizzato NF series modular prewired switch.
- Spring rod actuator with 90° transmission block.
- 1NO+2NC B12 snap action contact block.
- Technopolymer housing with 20 mm fixing points.
- IP67 protection according to EN 60529.
- Positive opening function for safety applications.
- PVC prewired cable connection.
- Designed for industrial position sensing applications.
Reliable Position Detection for Industrial Machinery
Mechanical limit switches such as the Pizzato NF B120HE-DN2W5 provide a dependable method of detecting the position and movement of machine components. The spring rod actuator converts mechanical movement into an electrical switching signal, enabling accurate machine monitoring and control.
The NF series is designed for industrial automation engineers and machine builders requiring compact, reliable switching devices. Its robust construction, safety-oriented contact arrangement and flexible actuator design allow integration into modern production systems.
Typical Applications
- Industrial machinery and automation equipment.
- Machine position and end-of-travel detection.
- Conveyor systems and material handling equipment.
- Packaging and production machinery.
- Assembly and manufacturing systems.
- Industrial control panels and automation installations.
