Lovato Electric PLN131311 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£99.06

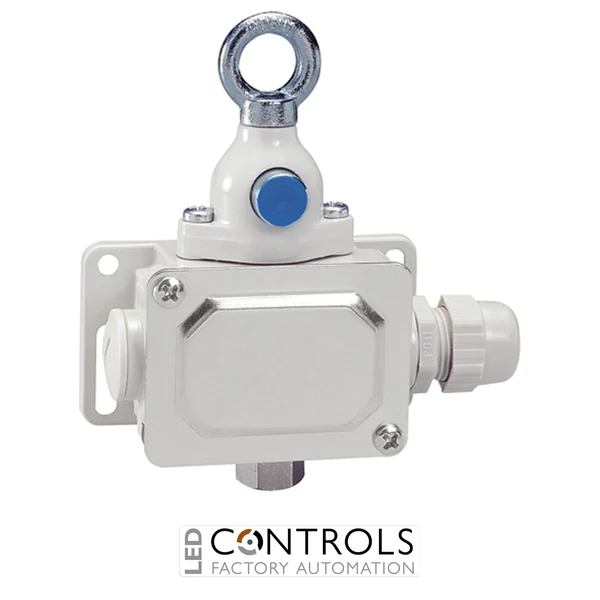

The Lovato PLN131311 is a heavy-duty rope pull lever safety switch designed for emergency stopping applications in industrial machinery, conveyor systems and automation equipment. Featuring a manual reset button, 1NO+1NC contact configuration and ISO 13850 compliant design, this safety switch provides reliable machine shutdown and operator protection.
Constructed with a durable aluminium-zinc alloy housing, the PLN131311 offers IP65 protection, PG11 cable entry with cable gland and a 60N operating force. The switch is designed for applications where pulling a connected safety rope immediately interrupts operation and requires manual reset before restarting.
| Manufacturer | Lovato Electric |
| Product Code | PLN131311 |
| Product Type | Rope Pull Lever Safety Switch |
| Application | Emergency stopping |
| Compliance | ISO 13850 compliant |
| Contact Configuration | 1NO + 1NC |
| Reset Function | Manual reset button |
| Operating Force | 60N |
| Housing Material | Aluminium-zinc alloy |
| Protection Rating | IP65 |
| Cable Entry | PG11 with cable gland |
| Thermal Current Ith | 6A |
| Rated Insulation Voltage Ui | 250V |
| Mechanical Life | 10,000,000 cycles |
| Operating Temperature | -25°C to +70°C |
| Weight | 400g |
| EAN | 8013975085769 |
| HS Code | 85365080 |
The Lovato PLN131311 is a rope pull lever safety switch designed for emergency stopping applications on industrial machinery and conveyor systems.
The PLN131311 features a 1NO+1NC contact configuration suitable for industrial safety and control circuits.
Yes. The PLN131311 includes a manual reset button that allows controlled restarting after the emergency stop condition has been cleared.
The Lovato PLN131311 has an IP65 protection rating, making it suitable for industrial environments requiring protection against dust and water ingress.
{ "@context": "https://schema.org", "@type": "Product", "name": "Lovato PLN131311 Rope Pull Lever Safety Switch 1NO+1NC with Reset Button IP65", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "mpn": "PLN131311", "sku": "PLN131311", "description": "Rope pull lever safety switch for emergency stopping with reset button, 1NO+1NC contacts, 60N operating force, aluminium-zinc alloy housing, IP65 protection and PG11 cable entry." } { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato PLN131311?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato PLN131311 is a rope pull lever safety switch designed for emergency stopping applications on industrial machinery and conveyor systems." } }, { "@type": "Question", "name": "What contact configuration does the PLN131311 have?", "acceptedAnswer": { "@type": "Answer", "text": "The PLN131311 features a 1NO+1NC contact configuration suitable for industrial safety and control circuits." } }, { "@type": "Question", "name": "Does the Lovato PLN131311 include a reset button?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The PLN131311 includes a manual reset button for controlled restarting after an emergency stop condition." } } ] }| Weight [g] | 248 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 088X055X120 |
| Volume [cm³] | 580.8 |
| Bar code [EAN13] | 8013975085769 |
| Product designation | Rope-pull lever with reset buttom |
| Product type designation | PLN131311 |
| Housing | Aluminium-zinc alloy |
| Type of contact | 1NO+1NC |
| Thermal current Ith | 6 |
| Rated insulation voltage Ui [V] | 250 |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| IEC Conventional free air thermal current Ith | 10 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Fixed |
| max | 14 |
| min [mm²] | 1 or 2 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | PG11 with cable gland |
| Mechanical life | 100000 |
| Mechanical operation | 1800 |
| min [°C] | -40 |
| max [°C] | +70 |
| Body housing | IP65 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
