PLNU1AW – 1NO+1NC TOP PUSH ROD PLUNGER LIMIT SWITC

Lovato Electric PLNU1AW electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: PLNU1AWMPN: PLNU1AW

List Price £63.13 ex VAT

Your Price (ex VAT)

£63.13

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £63.13

Trade pricing is personalised to your account

Manufacturer Lead Time

£63.13

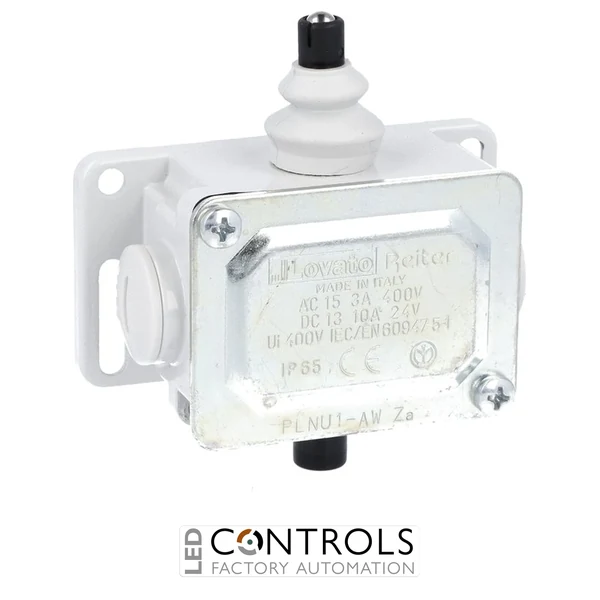

Lovato PLNU1AW Top Push Rod Plunger Limit Switch 1NO+1NC IP65

The Lovato PLNU1AW is a robust industrial metal limit switch featuring a top push rod plunger actuator, 1NO+1NC contact configuration, and an IP65 protection rating. Designed for reliable position detection and machine control applications, this Lovato Electric limit switch provides accurate mechanical switching performance in demanding industrial environments.

Lovato PLNU1AW Limit Switch Overview

The Lovato PLNU1AW belongs to the PLN series of metal limit switches and is designed for industrial automation applications requiring dependable mechanical position sensing. The unit features a durable aluminium-zinc alloy housing, fixed operating head, PG11 cable entry with cable gland, and screw terminal connections for secure installation.

With a 1NO+1NC contact arrangement, 10A thermal current rating, and IP65 enclosure protection, the PLNU1AW offers reliable operation for machinery, automation systems, and industrial control equipment where protection against dust and water ingress is required.

Key Features

Manufacturer: Lovato Electric
Model: PLNU1AW
Product Type: Top push rod plunger limit switch
Contact Configuration: 1NO + 1NC
Protection Rating: IP65
Housing Material: Aluminium-zinc alloy
Actuator Type: Top push rod plunger
Rated Thermal Current: 10A
Rated Insulation Voltage: 400V
Cable Entry: PG11 with cable gland
Mechanical Life: More than 10 million operations

Applications

The Lovato PLNU1AW limit switch is suitable for a wide range of industrial applications, including:

Industrial machinery position monitoring
Automation and control systems
Production line equipment
Conveyor systems
Material handling machinery
Industrial safety and control circuits

Why Choose Lovato PLNU1AW?

The Lovato PLNU1AW combines reliable mechanical switching with a rugged IP65-rated enclosure and durable metal construction. Its top push rod plunger actuator provides accurate position detection, while its long mechanical life makes it suitable for continuous industrial operation.

Technical Specifications

Weight [g]	240
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	088X055X120
Volume [cm³]	580.8
Bar code [EAN13]	8013975078501
Product designation	Top push rod plunger
Product type designation	PLN…A
Housing	Aluminium-zinc alloy
Type of contact	1NO+1NC
Thermal current Ith	10
Rated insulation voltage Ui [V]	400
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Fixed
max	14
max [mm²]	2.5
Cable connection	Screw terminal with clamp
Cable entry	PG11 with cable gland
Mechanical life	>10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Body housing	IP65
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Metal
Connection	PG11 cable entry

Frequently Asked Questions

What type of actuator does the Lovato PLNU1AW use?

The Lovato PLNU1AW uses a top push rod plunger actuator designed for mechanical position sensing applications.

What contact configuration does the PLNU1AW have?

The Lovato PLNU1AW features one normally open contact and one normally closed contact (1NO+1NC).

What is the IP rating of the Lovato PLNU1AW?

The Lovato PLNU1AW has an IP65 protection rating, providing protection against dust and low-pressure water jets.

What is the rated current of the Lovato PLNU1AW?

The Lovato PLNU1AW has a thermal current rating of 10A.

Weight [g]	240
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	088X055X120
Volume [cm³]	580.8
Bar code [EAN13]	8013975078501
Product designation	Top push rod plunger
Product type designation	PLN…A
Housing	Aluminium-zinc alloy
Type of contact	1NO+1NC
Thermal current Ith	10
Rated insulation voltage Ui [V]	400
Short-circuit protection with fuse	10 gG/SC QUICK FUSE
IEC Conventional free air thermal current Ith	10
Resistance per pole (average value)	<10
Operating head fixing	Fixed
max	14
max [mm²]	2.5
Cable connection	Screw terminal with clamp
Cable entry	PG11 with cable gland
Mechanical life	>10000000
Mechanical operation	3600
min [°C]	-40
max [°C]	+70
Body housing	IP65
ETIM 8.0	EC000030 - End switch
HS Code	85365080
Housing Material	Metal
Connection	PG11 cable entry
