TL10110 - ROD PLUNGER LIMIT SWITCH 1NO+ 1NC SLOW A

TL10110 – ROD PLUNGER LIMIT SWITCH 1NO+ 1NC SLOW A

Lovato Electric TL10110 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: TL10110MPN: TL10110
Price
List Price £41.22 ex VAT
Your Price (ex VAT)
£41.22
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £41.22
Trade pricing is personalised to your account

Manufacturer Lead Time

£41.22

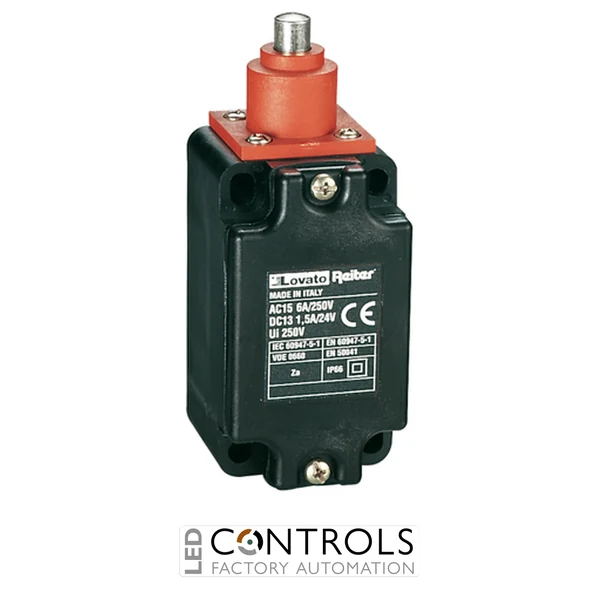

Lovato TL10110 Top Push Rod Plunger Limit Switch 1NO+1NC Slow Action

The Lovato TL10110 is a compact industrial plastic limit switch from the Lovato T series, featuring a top push rod plunger actuator, 1NO+1NC slow action contacts, and a durable thermoplastic housing. Designed for reliable position sensing and machine control applications, the TL10110 provides dependable mechanical switching performance for industrial automation systems.

Lovato TL10110 Limit Switch Overview

The Lovato TL10110 is manufactured to EN 50041 dimensions and features a top steel plunger actuator without a RESET button. Its polymer thermoplastic enclosure provides mechanical protection while maintaining a lightweight design suitable for general industrial installations.

Featuring a 1NO+1NC slow action contact arrangement, a 6A thermal current rating, and PG13.5 cable entry, the TL10110 is suitable for machinery, automation equipment, and industrial control applications requiring accurate position detection.

Key Features

  • Manufacturer: Lovato Electric
  • Model: TL10110
  • Product Type: Plastic limit switch
  • Series: T Series
  • Actuator Type: Top push rod plunger
  • Contact Configuration: 1NO + 1NC slow action
  • Plunger Material: Steel
  • Housing Material: Polymer thermoplastic
  • Cable Entry: PG13.5
  • Rated Thermal Current: 6A

Applications

The Lovato TL10110 limit switch is suitable for a variety of industrial applications, including:

  • Industrial machinery position detection
  • Automation control systems
  • Machine tooling equipment
  • Conveyor and handling systems
  • Production line monitoring
  • General industrial switching applications

Why Choose Lovato TL10110?

The Lovato TL10110 offers reliable mechanical switching in a compact thermoplastic enclosure. Its steel plunger actuator, slow action contacts, and standardised EN 50041 dimensions make it a practical solution for industrial automation and machinery control applications where dependable position feedback is required.

Technical Specifications

Weight [g] 120
Qty. per package 1
Multiple qty. of packs per order 1
Package dimensions [mm] 120X045X060
Volume [cm³] 324
Bar code [EAN13] 8013975084427
Product designation Top push rod plunger
Product type designation TL1
Housing Polymer thermoplastic
Rod Steel
Type of contact 1NO+1NC Slow action
Thermal current Ith 6
Rated insulation voltage Ui [V] 250
Short-circuit protection with fuse 10 gG/SC QUICK FUSE
min 16
max 14
IEC Conventional free air thermal current Ith 6
Resistance per pole (average value) <10
Operating head fixing Screwed
min [mm²] 1 or 2
max [mm²] 2.5
Cable connection Self-releasing screw terminal
Cable entry PG13.5
Mechanical life >10000000
Mechanical operation 1200
min [°C] -40
max [°C] +70
Body housing IP66
Pollution degree 3
ETIM 8.0 EC000030 - End switch
HS Code 85365080
Housing Material Plastic
Connection PG13.5 cable entry

Frequently Asked Questions

What type of actuator does the Lovato TL10110 use?

The Lovato TL10110 uses a top push rod plunger actuator with a steel plunger.

What contact configuration does the TL10110 have?

The Lovato TL10110 features one normally open and one normally closed contact (1NO+1NC) with slow action switching.

What is the rated current of the Lovato TL10110?

The TL10110 has a thermal current rating of 6A.

What material is the Lovato TL10110 housing made from?

The Lovato TL10110 features a polymer thermoplastic housing designed for industrial applications.
