Lovato Electric TL21010 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£87.25

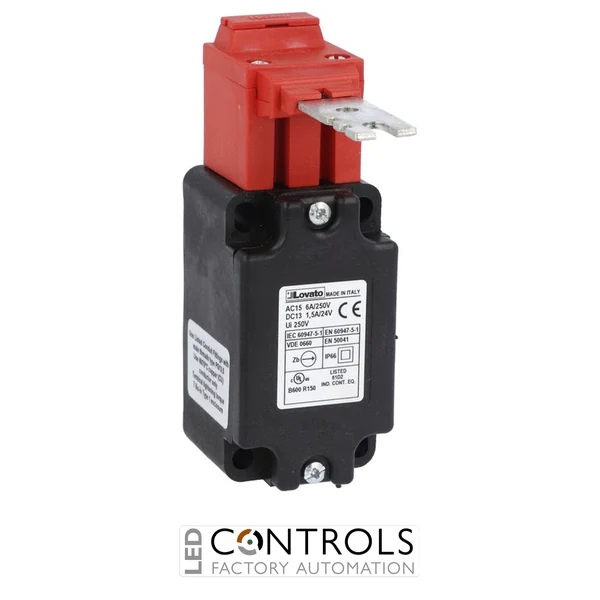

The Lovato Electric TL21010 is a T Series plastic limit switch featuring a straight key operated actuator, 1NO+1NC slow action contacts and no reset button. Designed for industrial automation, machinery control and position detection applications, this compact limit switch provides reliable mechanical switching performance with a robust thermoplastic housing.
Manufactured by Lovato Electric, the TL21010 is built to EN 50041 dimensions and features a polymer thermoplastic enclosure, PG13.5 cable entry and straight key actuator. It is suitable for OEM machinery, industrial control panels and automation systems requiring dependable keyed mechanical position sensing.
| Manufacturer | Lovato Electric |
|---|---|
| Model | TL21010 |
| Product Type | Plastic limit switch |
| Series | T Series |
| Actuator Type | Straight key operated |
| Reset Button | Without reset button |
| Contact Configuration | 1NO+1NC slow action |
| Housing Material | Polymer thermoplastic |
| Cable Entry | PG13.5 |
| Rated Insulation Voltage Ui | 250V |
| Thermal Current Ith | 6A |
| Protection Rating | IP66 |
| Operating Temperature | -25°C to +70°C |
| Weight | 140g |
| EAN | 8013975085035 |
| HS Code | 85365080 |
The Lovato TL21010 is suitable for applications requiring an EN 50041 style keyed limit switch with 1NO+1NC slow action contacts. Always verify electrical ratings, mounting dimensions and actuator requirements before installation.
The Lovato TL21010 is a T Series plastic limit switch with a straight key operated actuator, no reset button and 1NO+1NC slow action contacts.
No. The Lovato TL21010 is supplied without a reset button.
The TL21010 uses a straight key operated actuator designed for mechanical position detection.
It is commonly used in industrial automation, machinery control systems, OEM equipment and electrical control applications.
Lovato TL21010, TL21010 limit switch, Lovato key operated switch, Lovato T Series limit switch, straight key limit switch, industrial position switch.
| Weight [g] | 120 |
|---|---|
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 120X045X060 |
| Volume [cm³] | 324 |
| Bar code [EAN13] | 8013975085035 |
| Product designation | Key operated |
| Product type designation | TL2 |
| Housing | Polymer thermoplastic |
| Key shape | Straight |
| Type of contact | 1NO+1NC Slow action |
| Thermal current Ith | 6 |
| Rated insulation voltage Ui [V] | 250 |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 6 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Screwed |
| min [mm²] | 1 or 2 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | PG13.5 |
| Mechanical life | >10000000 |
| Mechanical operation | 1200 |
| min [°C] | -40 |
| max [°C] | +70 |
| Body housing | IP66 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
