Lovato Electric TS10521A electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£59.37

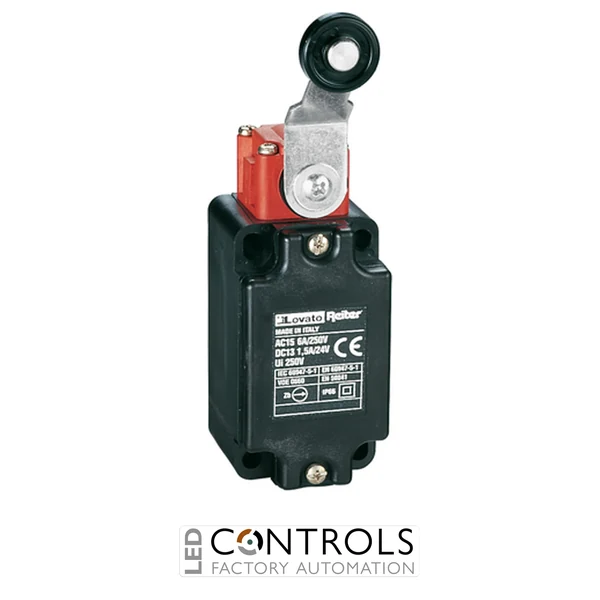

The Lovato Electric TS10521A is a professional roller lever limit switch featuring 1NO + 1NC snap action contacts and a durable metal roller actuator. Designed for industrial automation, machinery control and mechanical position detection applications, this genuine Lovato component provides reliable switching performance and long service life.
The Lovato TS10521A provides dependable mechanical switching for demanding industrial environments. Its EN 50041 dimensioned T series design, metal roller lever actuator and robust contact system make it suitable for professional automation systems, machinery and electrical control installations.
The Lovato Electric TS10521A is designed for compatible Lovato TS1 series applications including industrial machinery, automation equipment, control panels and electrical installations requiring a metal roller lever limit switch.
Supplied as a genuine Lovato Electric TS10521A metal roller lever limit switch suitable for professional industrial installation and maintenance applications.
Yes. This product is the genuine Lovato Electric TS10521A roller lever limit switch with 1NO + 1NC snap action contacts.
The TS10521A is used for mechanical position detection and switching applications in industrial automation and machinery systems.
The Lovato TS10521A features a 1NO + 1NC snap action contact configuration.
The Lovato TS10521A uses a metal roller actuator measuring Ø20 x 5mm.
TS10521A, Lovato TS10521A, Lovato Electric limit switch, metal roller lever limit switch, 1NO 1NC limit switch, Lovato TS1 series, industrial automation switch.
{ "@context": "https://schema.org", "@type": "Product", "name": "Lovato TS10521A Metal Roller Lever Limit Switch 1NO+1NC Snap Action", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "sku": "TS10521A", "description": "Lovato Electric TS10521A metal roller lever limit switch with 1NO+1NC snap action contacts for industrial automation and control applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Contact Configuration", "value": "1NO + 1NC Snap Action" }, { "@type": "PropertyValue", "name": "Actuator Type", "value": "Roller Lever" }, { "@type": "PropertyValue", "name": "Roller Material", "value": "Metal" }, { "@type": "PropertyValue", "name": "Protection Rating", "value": "IP66" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "Is this the correct part if I need a Lovato TS10521A?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. This product is the genuine Lovato Electric TS10521A roller lever limit switch with 1NO + 1NC snap action contacts." } }, { "@type": "Question", "name": "What is the Lovato TS10521A used for?", "acceptedAnswer": { "@type": "Answer", "text": "The TS10521A is used for mechanical position detection and switching applications in industrial automation and machinery systems." } }, { "@type": "Question", "name": "What contact arrangement does the TS10521A have?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato TS10521A features a 1NO + 1NC snap action contact configuration." } } ] }| Current | 10521 A |
|---|---|
| Weight [g] | 125 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 144X050X070 |
| Volume [cm³] | 504 |
| Bar code [EAN13] | 8013975084564 |
| Product designation | Roller lever |
| Product type designation | TS1 |
| Housing | Polymer thermoplastic |
| Roller | Metal |
| Type of contact | 1NO+1NC Snap action |
| Thermal current Ith | 6 |
| Rated insulation voltage Ui [V] | 250 |
| Short-circuit protection with fuse | 10 gG/SC QUICK FUSE |
| min | 16 |
| max | 14 |
| IEC Conventional free air thermal current Ith | 6 |
| Resistance per pole (average value) | <10 |
| Operating head fixing | Screwed |
| min [mm²] | 1 or 2 |
| max [mm²] | 2.5 |
| Cable connection | Self-releasing screw terminal |
| Cable entry | PG13.5 |
| Mechanical life | >10000000 |
| Mechanical operation | 1200 |
| min [°C] | -40 |
| max [°C] | +70 |
| Body housing | IP66 |
| Pollution degree | 3 |
| ETIM 8.0 | EC000030 - End switch |
| HS Code | 85365080 |
