Why Choose the Pizzato VNA00KG-R5 Adjustable Revolving Lever?

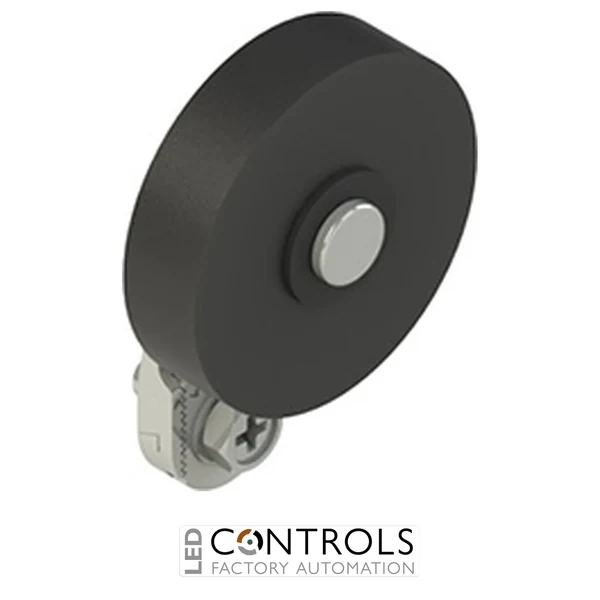

The Pizzato VNA00KG-R5 is an adjustable shaped metal revolving lever with a 40 mm rubber roller, designed for reliable mechanical actuation of compatible Pizzato position switches in industrial machinery and automation systems. As part of the Pizzato VN actuator range, it provides flexible and dependable position detection for machine builders and industrial control applications.
This actuator combines a shaped adjustable metal lever with a rubber roller, providing a broad rolling contact surface for mechanical interaction with moving machine components. The adjustable lever design allows the actuator geometry to be configured to suit different machine layouts and switching requirements, making it suitable for a wide range of industrial position-monitoring applications.
The VNA00KG-R5 is a special separate actuator designed for compatible Pizzato position switches. Pizzato's catalogue identifies the R5 configuration as a 40 mm rubber roller actuator, with the VN A00KG-R5 configuration intended for use with compatible switches from the FR and FX series. The actuator cannot be rotated towards the inside because it would contact the switch head during actuation.
Key Advantages
- Adjustable shaped metal revolving lever for Pizzato position switches.
- 40 mm diameter rubber roller provides a broad rolling contact surface.
- Adjustable lever design allows flexible positioning during machine installation.
- Designed for reliable mechanical actuation and position monitoring.
- Suitable for compatible Pizzato FR and FX series position switches.
- Suitable for industrial machinery, automation and OEM applications.
Key Features
- Pizzato VN actuator range.
- Adjustable shaped metal revolving lever.
- 40 mm diameter rubber roller.
- Broad rolling contact surface for mechanical actuation.
- Designed as a special separate actuator for compatible position switches.
- Compatible with Pizzato FR and FX series position switches.
- Suitable for industrial machine position detection.
- Cannot be rotated towards the inside because the actuator would contact the switch head during actuation.
Reliable Mechanical Actuation for Position Switches
The Pizzato VNA00KG-R5 provides a robust mechanical interface between a moving machine component and a compatible position switch. Its shaped revolving lever and rubber roller arrangement allows the actuator to follow machine movement while providing dependable switching action.
The 40 mm rubber roller provides a broad rolling contact surface for repeated mechanical operation. The shaped adjustable metal lever provides installation flexibility, allowing the actuator to be positioned appropriately for the required switching movement. Pizzato specifies that this actuator must be used with compatible FR or FX series switches and that its inward rotation is restricted by the switch head.
Typical Applications
- Industrial position switches.
- Machine guard and access monitoring systems.
- Production and manufacturing machinery.
- Industrial automation equipment.
- Mechanical position detection.
- OEM machine-building applications.
