Why Choose the Pizzato BC 2Z8A3A1AL5 BC Series Passive Junction Box?

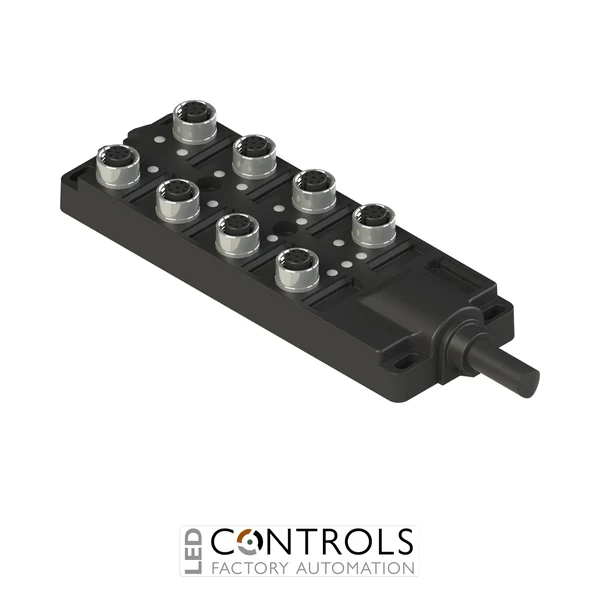

The Pizzato BC 2Z8A3A1AL5 is a BC series passive junction box designed to simplify decentralised wiring for multiple devices in industrial machine-safety and automation systems. It provides 8 female 8-pole M12 inputs in a compact technopolymer housing, enabling several field-mounted devices to be connected through a single organised distribution point.
Operating from a 24 V DC supply, the BC 2Z8A3A1AL5 combines its eight M12 connections with an axial multicore output cable. This particular version is supplied with a 5 m PVC cable comprising 2 × 0.75 mm² + 17 × 0.34 mm² conductors, providing additional installation reach between the junction box and the machine control system.
The compact 54 × 152 mm technopolymer housing makes the unit suitable for mounting close to field devices, helping reduce individual cable runs back to the control cabinet. As part of Pizzato's BC passive junction-box family, it provides a practical connectivity solution for machine builders seeking cleaner wiring, easier installation and more organised maintenance.
Key Advantages
- Provides a central passive connection point for up to 8 field devices.
- 8 female 8-pole M12 inputs simplify connection of compatible equipment.
- Helps reduce individual point-to-point cable runs back to the control cabinet.
- Supplied with a generous 5 m axial PVC multicore cable.
- Operates from a standard industrial 24 V DC supply.
- Compact 54 × 152 mm housing supports decentralised machine installation.
- Robust technopolymer enclosure suited to industrial environments.
- Purpose-designed for organised machine-safety and automation wiring.
Key Features
- Pizzato BC series passive junction box.
- Manufacturer reference BC 2Z8A3A1AL5.
- 8 × M12 female 8-pole inputs.
- 24 V DC supply voltage.
- Axial cable outlet configuration.
- 5 m PVC multicore cable.
- Cable construction of 2 × 0.75 mm² + 17 × 0.34 mm².
- Compact technopolymer enclosure.
- Designed for decentralised field-device connections.
- Suitable for industrial machine-safety and automation systems.
Reliable Decentralised Connectivity for Industrial Machinery
The Pizzato BC 2Z8A3A1AL5 allows multiple field-mounted devices to be brought together at one convenient connection point. Its eight M12 female ports help create an organised wiring architecture around machinery, reducing the need to route separate long cables from every device directly to the main control enclosure.
The integrated 5 m multicore PVC cable is particularly useful where the distribution point must be positioned some distance from the control cabinet. Combined with its compact technopolymer housing and 24 V DC architecture, the BC 2Z8A3A1AL5 provides machine builders with a practical passive distribution solution for safety and automation installations.
Typical Applications
- Industrial machine-safety wiring systems.
- Decentralised connection of multiple field devices.
- Safety-switch and safety-sensor installations.
- Automated manufacturing and assembly machinery.
- Robotic cells and guarded automation systems.
- Packaging and processing machinery.
- Conveyor and material-handling equipment.
- OEM machine building and industrial control systems.
