Why Choose the Pizzato SM G1T High-Level Coded Actuator?

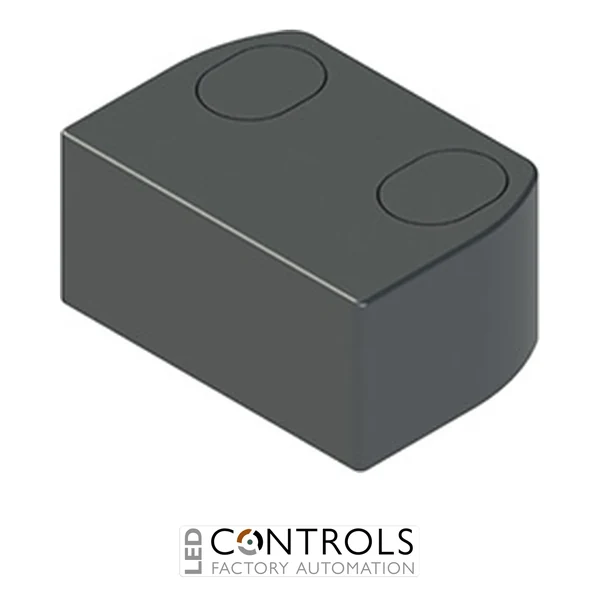

The Pizzato SM G1T is a high-level coded RFID actuator designed for compatible Pizzato ST Series non-contact safety sensors, including the compact ST G sensor family. Installed on the movable part of a machine guard or protective door, it provides the uniquely coded target required by the associated sensor for reliable guard-position monitoring.
The SM G1T uses high-level RFID coding, with the compatible sensor recognising one specific 1T actuator code. Pizzato provides millions of possible coding combinations for its high-level coded actuators, supporting high-level coding according to EN ISO 14119 and helping reduce the possibility of deliberate or accidental substitution with another actuator.
With an 11 mm actuation distance, compact 37 × 26 × 18 mm standard actuator format and 22 mm mounting-hole spacing, the SM G1T is designed for practical installation on industrial machine guards. Its passive, non-contact operation requires no direct electrical wiring to the actuator and avoids mechanical engagement with the associated safety sensor.
Key Advantages
- High-level coded RFID actuator for enhanced actuator identification.
- 11 mm actuation distance for compatible Pizzato safety sensors.
- Millions of possible actuator codes support high-level coding according to EN ISO 14119.
- Compatible sensor recognises the specific programmed 1T actuator.
- Non-contact operation avoids mechanical engagement between sensor and actuator.
- Compact 37 × 26 × 18 mm standard actuator design.
- 22 mm mounting-hole spacing supports straightforward guard installation.
- Passive actuator requires no direct electrical wiring or power supply.
Key Features
- Pizzato SM G1T coded actuator.
- High coding level.
- RFID actuator recognition.
- 11 mm actuation distance.
- Standard G actuator design.
- Dimensions: 37 × 26 × 18 mm.
- Mounting-hole spacing: 22 mm.
- Designed for compatible Pizzato ST Series safety sensors.
- Non-contact, passive operating principle.
- Suitable for industrial machine-guard and protective-door monitoring.
High-Level RFID Coded Guard Monitoring
Pizzato ST Series safety sensors use RFID technology to identify a coded actuator positioned on the movable machine guard. With a high-level coded SM G1T, the sensor is programmed to recognise the specific actuator code rather than accepting any actuator of the same general type. This provides a high degree of actuator uniqueness for machine-safety applications where protection against substitution or tampering is important.
The SM G1T combines this high-level coding with an 11 mm actuation distance and compact standard G-format housing. Because sensing is contactless and the actuator is passive, there is no electrical wiring to the actuator and no mechanical engagement with the sensor during normal guard operation, making it suitable for frequently operated hinged, sliding and removable guards.
Typical Applications
- Industrial machine-guard monitoring.
- Hinged protective doors and guards.
- Sliding machine guards.
- Removable safety panels.
- Robotic cells and automated production lines.
- Packaging and assembly machinery.
- Machining centres and processing equipment.
- Compatible Pizzato ST Series RFID safety systems.
