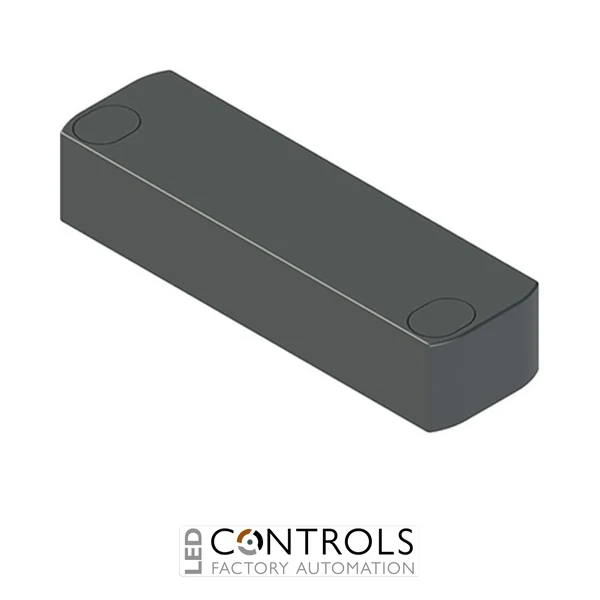

Why Choose the Pizzato SM H1TF High Level Coded Actuator?
The Pizzato SM H1TF is a high level coded actuator designed for use with compatible Pizzato SM Series safety sensors for contactless monitoring of movable machine guards, doors and protective access points. Identified by part number SMH1TF, it provides coded actuator recognition for industrial machine safety applications where dependable guard-position detection is required.
The SMH1TF has an actuation distance of 11 mm and uses high-level coding to provide enhanced actuator identification when paired with the appropriate compatible sensor. Its contactless operating principle avoids the mechanical engagement associated with traditional tongue-operated safety switches, helping reduce wear during repeated guard opening and closing cycles.
As a passive coded actuator, the Pizzato SMH1TF is installed on the movable part of a guard or door and positioned in relation to its compatible safety sensor. This arrangement provides a practical solution for automated machinery, production equipment and guarded manufacturing cells requiring reliable contactless position monitoring.
Key Advantages
- High level coded actuator for compatible Pizzato safety sensors.
- 11 mm actuation distance for reliable contactless detection.
- High-level coding provides enhanced actuator identification.
- Contactless operation eliminates mechanical engagement between sensor and actuator.
- Helps minimise mechanical wear in frequently operated machine guards.
- Passive actuator requires no separate electrical wiring.
- Suitable for reliable monitoring of movable guards, doors and access points.
Key Features
- Pizzato SM Series coded actuator.
- High level coded design.
- 11 mm actuation distance.
- Contactless coded actuation principle.
- Passive actuator for compatible electronic safety sensors.
- Designed for machine guard and safety-door monitoring.
- No electrical connection required at the actuator.
- Suitable for industrial machine safety and automation systems.
Reliable High-Level Coded Actuation for Machine Guard Monitoring
Contactless coded safety systems determine guard position by detecting a recognised actuator within the operating zone of a compatible safety sensor. When the Pizzato SMH1TF approaches its associated sensor, its coded identity can be recognised by the safety system without requiring physical engagement between the two components.
The high level coded design is particularly useful where enhanced actuator identification is required. Combined with its 11 mm actuation distance and wear-free contactless operating principle, the SMH1TF provides a practical actuator solution for industrial guards and doors that are opened regularly during production, maintenance or process access.
Typical Applications
- Movable machine guard monitoring.
- Industrial safety doors and access panels.
- Packaging and processing machinery.
- Automated production and assembly equipment.
- Machine-tool guarding systems.
- Robotic and automated manufacturing cells.
- Conveyor and material handling machinery.
- OEM machine safety systems.
