Why Choose the Pizzato SR AD41AN30-A01N Safety Coded Magnetic Sensor?

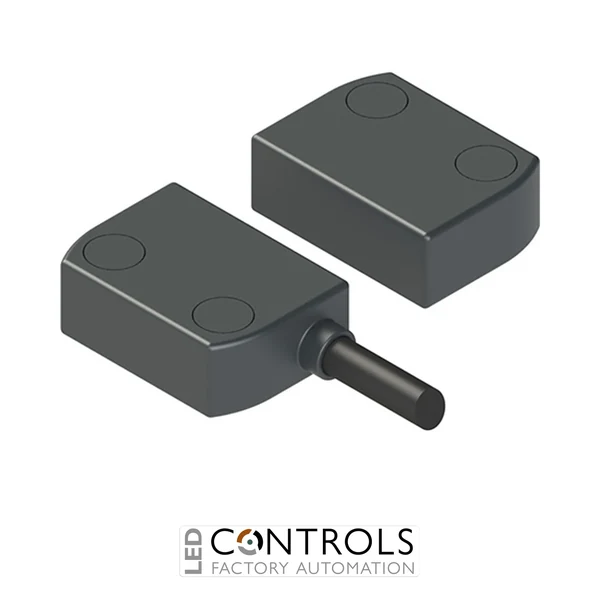

The Pizzato SR AD41AN30-A01N is a complete coded magnetic safety sensor with actuator designed for reliable non-contact monitoring of guards, doors and protective covers on industrial machinery. Part of the Pizzato SR-A Series, this configuration combines a coded magnetic sensor with its matching actuator for dependable guard position monitoring.
The SR AD41AN30-A01N provides a 2NC + 1NO contact configuration with the guard closed. Its coded magnetic operating principle allows the sensor to monitor the corresponding actuator without mechanical contact, helping reduce wear compared with mechanically actuated guard switches while supporting reliable machine safety applications.
Designed for installations requiring an extended cable run, this model is supplied with a 30 m PVC cable with 6 × 0.25 mm² conductors. It also provides a nominal 5 mm actuation distance, right-hand cable exit and durable technopolymer construction, making it particularly useful where the safety sensor must be wired back to a remotely positioned control panel.
Key Advantages
- Complete coded magnetic safety sensor and actuator for machine guard monitoring.
- 2NC + 1NO contacts with the protective guard closed.
- Long 30 m pre-wired PVC cable for installations with remotely located control equipment.
- Nominal 5 mm actuation distance supports practical non-contact guard alignment.
- Non-contact magnetic operation helps minimise mechanical wear.
- Durable technopolymer housing designed for industrial machinery applications.
Key Features
- Pizzato SR-A Series coded magnetic safety sensor.
- Supplied complete with matching coded magnetic actuator.
- 2NC + 1NO contact configuration with guard closed.
- Coded magnetic non-contact operating principle.
- 5 mm actuation distance.
- 30 m PVC cable.
- 6 × 0.25 mm² cable conductors.
- Right-hand electrical connection exit.
- Robust technopolymer housing.
- Designed for aligned sensor and actuator mounting.
- Suitable for industrial guard, door and protective cover monitoring.
Reliable Non-Contact Guard Monitoring
Coded magnetic safety sensors monitor movable machine guards without requiring physical engagement between the sensor and actuator. When the correctly coded actuator is positioned within the operating distance of the sensor, its contacts change state so that the guard condition can be evaluated by an appropriately designed machine safety control system.
The Pizzato SR-A Series is particularly useful on machinery with frequently operated guards or applications where mechanical wear needs to be minimised. With its unusually long 30 m cable, the SR AD41AN30-A01N can also simplify installations where the monitored guard is positioned a considerable distance from the machine's safety control equipment.
Typical Applications
- Industrial machine safety guards.
- Hinged and sliding safety doors.
- Protective covers and removable access panels.
- Packaging and processing machinery.
- Automated assembly and production equipment.
- Large machinery requiring long sensor cable runs.
