Why Choose the Pizzato SR AD42AM0.1 Magnetic Safety Sensor?
The Pizzato SR AD42AM0.1 is a compact and reliable coded magnetic safety sensor designed for non-contact monitoring of movable guards, doors and protective covers on industrial machinery. As part of the Pizzato SR-A series, it uses coded magnetic actuation and reed contact technology to provide dependable guard-position monitoring without the mechanical wear associated with conventional mechanically actuated safety switches.
The SR AD42AM0.1 features a 1NC+1NO contact configuration with the monitored guard closed, providing one normally closed and one normally open contact for integration with suitable machine safety and monitoring circuits. Its non-contact magnetic operating principle makes it particularly useful for frequently operated guards and industrial applications where reliable position monitoring is required.

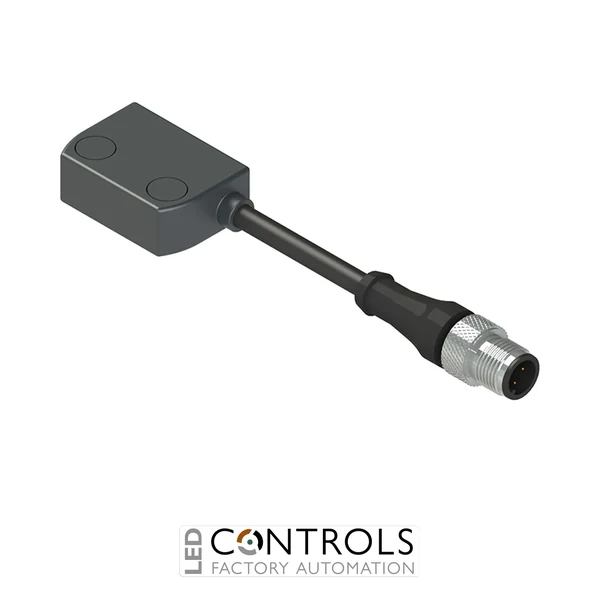

This version features a 0.1 m PVC cable terminating in a 4-pole M12 connector, with the connection positioned on the right-hand side of the technopolymer housing. The sensor is supplied without an actuator and can be paired with the compatible SM A01N coded magnetic actuator, which provides a 5 mm actuation distance.
Key Advantages
- Non-contact coded magnetic safety sensing for industrial machine guards.
- 1NC+1NO contact configuration for safety and monitoring functions.
- Convenient 4-pole M12 connector for straightforward installation and replacement.
- Compact technopolymer housing with right-side connection.
- IP67 protection rating for demanding industrial environments.
- Suitable for safety functions up to SIL 3 and PL e when correctly integrated with appropriate safety control equipment.
Key Features
- Pizzato SR-A coded magnetic safety sensor series.
- 1 normally closed + 1 normally open (1NC+1NO) contacts with the guard closed.
- Reed contact switching technology.
- Non-contact coded magnetic actuation.
- 0.1 m PVC connection cable.
- 4-pole M12 connector.
- Right-side electrical connection.
- Durable technopolymer housing.
- IP67 protection rating.
- Designed for use with the compatible SM A01N coded magnetic actuator.
Reliable Non-Contact Guard Monitoring
Coded magnetic safety sensors monitor the position of movable machine guards without requiring physical contact between the sensor and actuator. When the matching coded actuator enters the sensor's operating range, the reed contacts assume their closed-guard state, allowing the associated safety control system to determine whether the protective guard is correctly positioned.
The Pizzato SR-A series is designed for use as an electrical interlocking device associated with movable guards. When correctly installed and connected to appropriate safety modules, SR-A sensors can form part of machine safety control circuits achieving up to SIL 3 and PL e, making the SR AD42AM0.1 a practical solution for modern industrial machine guarding.
Typical Applications
- Machine guard and safety door monitoring.
- Protective covers and access panels.
- Automated production and assembly machinery.
- Packaging and processing equipment.
- Conveyors and material handling systems.
- OEM machinery and industrial automation systems.
