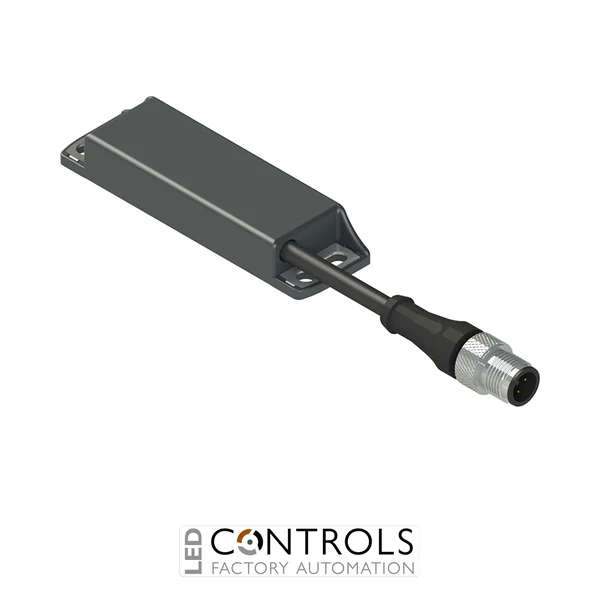

Why Choose the Pizzato SR BD42AM0.1 Magnetic Safety Sensor?
The Pizzato SR BD42AM0.1 is a compact and reliable coded magnetic safety sensor designed for monitoring machine guards, safety doors and protective covers in industrial safety applications. As part of the proven Pizzato SR B series magnetic safety sensors, it provides non-contact guard monitoring with excellent resistance to contamination, mechanical wear and demanding industrial conditions.
This safety sensor detects the correct coded magnetic actuator position without mechanical contact, helping improve machine protection while reducing maintenance requirements. The robust technopolymer housing with metal fixing plates provides dependable installation for industrial automation and machine guarding systems.
Featuring 1NC + 1NO contacts, a compact 0.1 m PVC cable with M12 4-pole connector and IP67 / IP69K protection, the SR BD42AM0.1 is suitable for safety monitoring applications where a reliable coded magnetic sensing solution is required.
Key Advantages
- Compact coded magnetic safety sensor for machine guarding.
- Non-contact operation reduces mechanical wear and extends service life.
- 1NC + 1NO contact configuration for safety and auxiliary signalling functions.
- IP67 and IP69K protection for harsh industrial environments.
- M12 4-pole connector enables straightforward electrical installation.
- Suitable for integration with compatible Pizzato safety modules.
Key Features
- Pizzato SR B series coded magnetic safety sensor.
- Magnetic actuation technology without mechanical contact.
- 1NC (normally closed) + 1NO (normally open) contacts.
- 0.1 m PVC cable with M12 4-pole connector.
- Technopolymer housing with metal fixing plates.
- Reed contact switching element.
- Designed for monitoring movable guards and machine protection systems.
- Can achieve high safety performance when connected to a suitable safety module.
Reliable Safety Monitoring for Industrial Machinery
Coded magnetic safety sensors such as the Pizzato SR BD42AM0.1 provide dependable monitoring of movable machine guards by detecting the dedicated magnetic actuator when the guard is correctly closed. This enables safety systems to identify unsafe access conditions and help prevent hazardous machine operation.
The SR B series is designed for industrial automation environments where compact dimensions, robust construction and reliable safety monitoring are required. When connected to an appropriate safety module, these sensors support advanced machine protection systems.
Typical Applications
- Machine guard and safety door monitoring.
- Industrial automation safety systems.
- Packaging and production machinery.
- Robotic cells and manufacturing equipment.
- Processing machines and protective enclosures.
- Safety interlock applications requiring non-contact monitoring.
