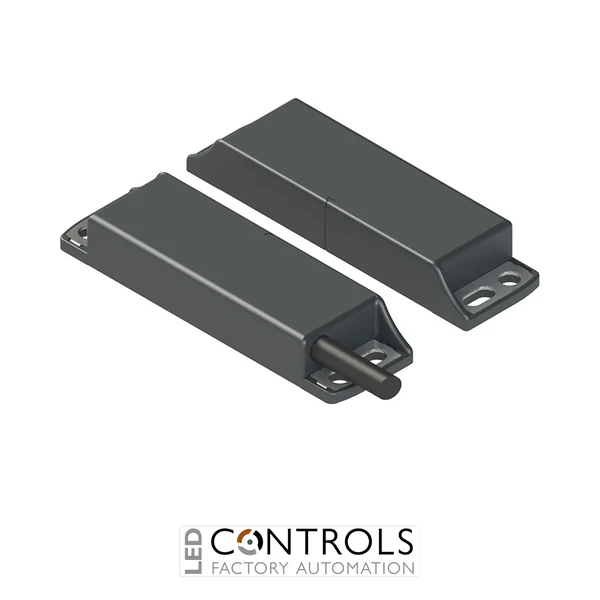

Why Choose the Pizzato SR BD42AN10-B01F Magnetic Safety Sensor?
The Pizzato SR BD42AN10-B01F is a robust coded magnetic safety sensor complete with actuator designed for non-contact monitoring of guards, doors and access points on industrial machinery. As part of the Pizzato SR B series, it provides dependable machine safety monitoring in applications where mechanical safety switches may be exposed to dirt, dust, moisture or frequent operation.
The sensor uses magnetic actuation without direct mechanical contact, helping reduce wear while supporting reliable detection of guard position. Its reinforced technopolymer housing, stainless steel fixing plates and high environmental protection ratings make it suitable for demanding industrial installations and machinery where dependable safety interlocking is required.
The SR BD42AN10-B01F features 1NO + 1NC contacts with the guard closed, a 10 m PVC cable and the supplied SM B01F coded actuator with a 5 mm actuation distance. With protection ratings of IP67 and IP69K, it is well suited to industrial equipment operating in dusty, wet or washdown environments.
Key Advantages
- Non-contact coded magnetic safety sensor for machine guarding.
- Supplied complete with SM B01F coded actuator.
- 1NO + 1NC contact configuration with the guard closed.
- 10 m integrated PVC cable for flexible machine installation.
- 5 mm actuation distance for reliable guard detection.
- IP67 and IP69K protection for demanding industrial environments.
- Technopolymer construction with stainless steel fixing plates.
- Non-contact operation helps minimise mechanical wear and maintenance.
Key Features
- Pizzato SR B series coded magnetic safety sensor.
- 1NO + 1NC contacts with closed guard.
- 10 m PVC cable.
- SM B01F coded actuator included.
- 5 mm nominal actuation distance.
- IP67 protection according to EN 60529.
- IP69K protection according to ISO 20653.
- Glass-fibre reinforced self-extinguishing technopolymer housing.
- Stainless steel fixing plates for secure installation.
- Low coding level according to EN ISO 14119.
- Designed for use with compatible safety control systems and safety modules.
Reliable Non-Contact Safety Monitoring
Coded magnetic safety sensors such as the Pizzato SR B series monitor the position of movable machine guards without requiring direct mechanical contact between the sensor and actuator. When the coded actuator approaches the sensor, the safety contacts change state so that a compatible safety control system can determine whether the guard is correctly closed.
This contactless operating principle makes the SR BD42AN10-B01F particularly suitable for machinery exposed to contamination, moisture or repetitive guard movements. The high IP protection, coded actuator and robust housing help provide dependable operation in industrial automation and machine safety systems.
Typical Applications
- Machine guard and access door monitoring.
- Industrial automation equipment.
- Packaging and production machinery.
- Food and beverage processing machinery.
- Material handling and conveyor systems.
- Washdown and high-contamination environments.
- OEM machinery and automated production cells.
