Why Choose the Pizzato ST DD210M0.1-E0T Safety Sensor?
The Pizzato ST DD210M0.1-E0T is an advanced RFID safety sensor designed for reliable non-contact monitoring of guards, doors and protective devices on industrial machinery. As part of the Pizzato ST D series, it uses RFID technology to identify the associated actuator, providing dependable guard detection without mechanical contact between the sensor and actuator.
The ST DD210M0.1-E0T provides 2 safety outputs OS1-OS2 together with 1 signalling output O3 for integration into industrial machine safety and automation systems. Its redundant electronic design allows the ST D series to contribute to safety architectures up to PL e, Category 4 and SIL 3 when correctly integrated, while its solid-state non-contact operation supports a long service life in machinery with frequent operating cycles.

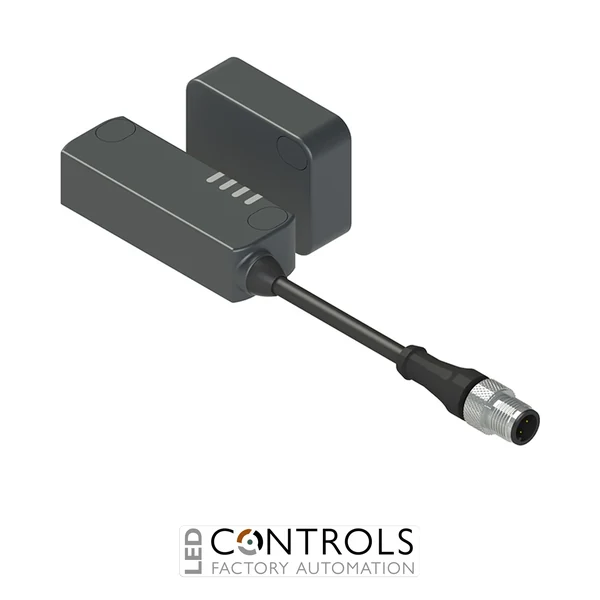

This model features a 0.1 m cable with an M12 connector positioned on the right-hand side of the technopolymer housing and is paired with the SM E0T low-level coded RFID actuator. The E-type actuator provides a generous 20 mm actuation distance, while IP67 and IP69K protection supports dependable use in demanding industrial and washdown environments.
Key Advantages
- Advanced RFID non-contact safety sensing for industrial guard monitoring.
- 2 safety outputs OS1-OS2 plus 1 signalling output O3.
- Generous 20 mm actuation distance accommodates machine and guard tolerances.
- 0.1 m cable with M12 connector supports convenient installation and servicing.
- Can contribute to safety systems up to PL e, Category 4 and SIL 3.
- IP67 and IP69K protection for demanding industrial environments.
Key Features
- Pizzato ST D series RFID safety sensor.
- 2 OS safety outputs and 1 O3 signalling output.
- 24 V DC power supply.
- RFID-based non-contact actuator detection.
- SM E0T low-level coded actuator.
- 20 mm actuator actuation distance.
- 0.1 m cable with M12 connector at the right.
- Technopolymer housing for industrial applications.
- IP67 and IP69K environmental protection.
- LED status indication for easier machine diagnostics.
Reliable RFID Guard Monitoring for Industrial Machinery
RFID safety sensors such as the Pizzato ST DD210M0.1-E0T monitor protective guards without requiring mechanical contact between the sensor and actuator. The sensor detects the RFID actuator when it enters the permitted operating zone and switches its electronic safety outputs, enabling the machine safety system to determine whether the guard is correctly positioned.
The ST D series uses redundant electronics and is designed for integration into high-performance machine safety architectures. Its wide sensing range, non-contact operating principle and resistance to demanding environmental conditions make it particularly suitable for machinery with frequent guard movements, alignment tolerances or intensive cleaning requirements.
Typical Applications
- Machine guard and safety door monitoring.
- Automated production and assembly machinery.
- Packaging and processing equipment.
- Industrial access panels and protective covers.
- Food, beverage and washdown machinery.
- OEM automation and high-performance machine safety systems.
